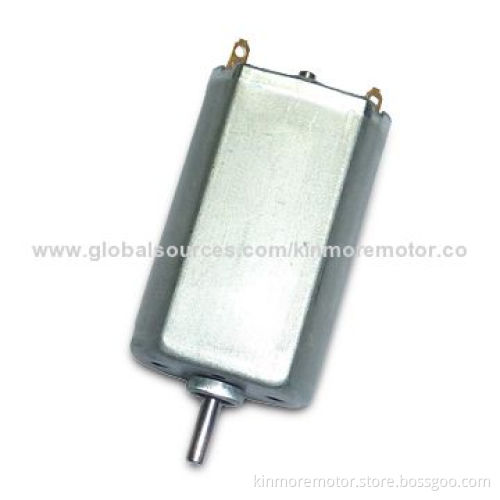

Micro Lowest DC Motor, Application for Tooth Brush, Mini Printer and Toy

Micro Lowest DC Motor, Application for Tooth Brush, Mini Printer and Toy

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:

Motor housing (D x flat x L): 20.4 x 15.4 x 32.1mm (material: SECD)
Shaft: Ø2.0mm carbon steel (nickel-coated)
Way of commutation: metal brush system
Structure: 2-pole stators and 3-slot armature
Insulation: class F magnet wire
Rotation: CW/CCW and reversible
Performance:
- Rated voltage: 1.2V DC
At no load:
- Speed: 5,900rpm
- Current: 350mA maximum
At maximum efficiency:
- Speed: 4,200rpm
- Current: 1,800mA (maximum)
- Torque: 23g.cm
At stall:
- Current: 4,300mA (maximum)
- Torque: 58g.cm (minimum)
- Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression

Packaging:

Quantity: 350 pieces
Gross weight: 12.2kg (approximately)
Dimensions: 41 x 27.5 x 12.5cm

About us:

Main products: auto DC, electric, gear, DC, brushed DC, spur gear, micro, vibration and more motors
Size range: 6-52mm, diameter
DC voltage range: 1.5-42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1-30,000rpm
Stall torque: 5g.cm-30kg.cm
Applications: home appliance, power tools, toys, model, precision instrument, office equipment, personal care product, automotive, audio, visual equipment and more

Our service:

OEM and customization are available
RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at a low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Light weight and long lifespan
