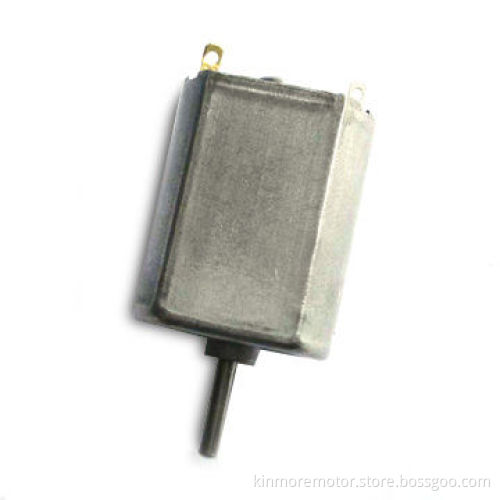

3V DC micro motor for tooth brush, toy, electric shaver

3V DC micro motor for tooth brush, toy, electric shaver

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specifications:

Motor housing (D x flat x L): 20.4 x 15.4 x 25.1mm
Material: SECD
Shaft (diameter): 2.0mm carbon steel (nickel coating)
Way of commutation: carbon brush
Structures: 2 poles stator and 3 slots armature
Rotation: CW/CCW and reversible
Options: extended shaft on the end cap side, metal brushes and P magnet, EMI/EMC suppression

Performance:

Rated voltage: 3.0V DC
At no load:
- Speed: 3,500rpm
- Current: 0.035A
Efficiency (maximum):
- Speed: 2,780rpm
- Current: 0.14A
- Torque: 8g/cm
At stall:
- Current: 0.52A (maximum)
- Torque: 38.9g/cm
Customized data requirements are welcome for our engineer's evaluation

Packing:

Quantity: 350 pieces
Gross weight: 9.2kg
Dimensions: 41 x 27.5 x 12.5cm

About us:

Main products: auto DC, electric, gear, DC, brush DC, spurgear, micro, vibration and more motors
Product size range: 6 - 52mm, diameter
DC voltage range: 1.5 - 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 - 30,000RPM
Stall torque: 5g.cm - 30kg.cm
Applications: home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and so on

Our service:

OEM and customization are available
ROHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High degree of protection
Small mechanical time constant
Resist Intense vibrations
Zero axial gap
Low noise design
Fast response (Small Tm)
High torque at a low speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Light weight and long life
