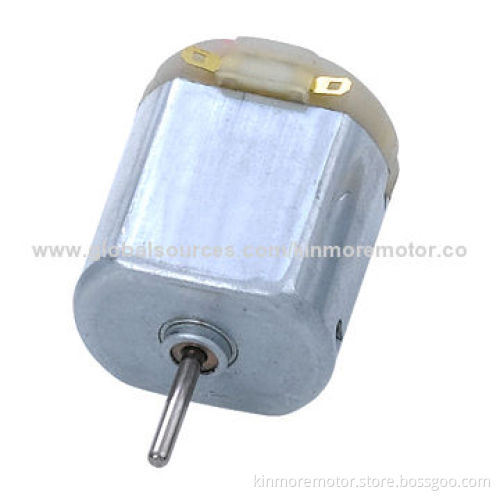

DC Motor Controller for Door Lock Actuator, Hair Trimmer, Hair Dryer and Scanner

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimensions of the motor:

Diameter: 24.2mm
Length: 27.0mm
Height: 18.3mm
Shaft diameter: 2.0mm
Output shaft length can be customized

Performance of the motor:

Operating voltage range: 6.0-9.0V
Nominal voltage: 12V
No load: speed: 8,700rpm
Current: 0.05A

At maximum efficiency:

Speed: 7,330rpm
Current: 0.27A
Torque: 2.47m/Nm/25.2g.cm
Output: 1.9W

Stall:

Torque: 15.7m/Nm/160.1g.cm
Current: 0.63A
Direction of rotation: CW/CCW
End play: 0.05-0.45mm

Features:

Plastic end cap
Carbon brush
Carbon steel shaft
Oil-impregnated bearing
Leaf brush system
Varistor for option

Typical applications:

Rearview mirror
Headlamp adjuster
Mirror adjuster
RC model/toy

Construction of motor:

Two-pole stator
SR ferrite permanent magnet
3, 5, 7, 8, 9 and 12 slots armature
Silicone steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commentator
Copper graphite brushes
Cu leaf brush commutation system
SECD round/flat-shaped housing
SECD end cap/PA66 and fiber end cap
Cylinder (self-aligning) sintered bush
155° (class F) copper wire

Note: above is just for customers' reference, customized specifications are welcomed

About us:

Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
Product size range: 6 - 52mm, diameter
DC voltage range: 1.5 - 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 - 30,000rpm
Stall torque range: 5 - 30kg.cm
Applications: home appliance, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment and more

Our services:

OEM and customization are available
With ROHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at a low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long life
