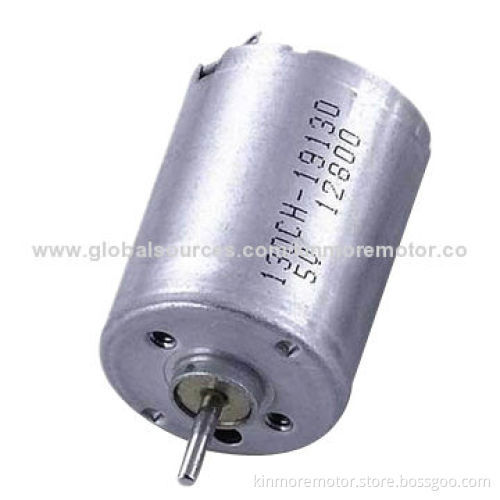

Micro/DC Motor with Precious Metal Brush, Used for RC Models/Toys/Electric Shavers

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specifications:

Motor housing (D x L): 17.1 x 22.8mm (material: SECD)
Shaft (diameter): 1.5mm carbon steel (nickel coating)
Way of commutation: metal brush
Structure: 2-pole stator and 3-slot armature
Rotation: CW/CCW and reversible
Options: EMI/EMC suppression, vibration

Technical performance data:

Rated voltage: 3.5V DC
At no load:
- Speed: 4,700rpm
- Current: 0.03A
At 4.9g.cm load:
- Speed: 3,700rpm
- Current: 0.12A
At stall:
- Current: 0.41A
- Torque: 24g.cm
Customized data requirements are welcomed for our engineer's evaluation

Customization options:

OEM and customization are available
Compliant with the RoHS Directive
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at a low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan

About us:

Our main products: diameter 6 to 52mm DC micro, auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration motors and more
Products size range: diameter 6-52mm
DC voltage range: 1.5 to 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 to 30,000rpm
Stall torque: 5g.cm to 30kg.cm

Applications:

Home appliances, power tools, toys and models, precision instruments, office equipment, personal care products, automotive, audio and visual equipment and more
Suitable for RC models, toys and electric shavers

Motor housing (D x L): 17.1 x 22.8mm (material: SECD)

Shaft (diameter): 1.5mm carbon steel (nickel coating)

Way of commutation: metal brush

Structure: 2-pole stator and 3-slot armature

Rotation: CW/CCW and reversible

Options: EMI/EMC suppression, vibration

Rated voltage: 3.5V DC

At no load:

Speed: 4,700rpm
Current: 0.03A

At 4.9g.cm load:

Speed: 3,700rpm
Current: 0.12A

At stall:

Current: 0.41A
Torque: 24g.cm

Customized data requirements are welcomed for our engineer's evaluation

Speed: 4,700rpm

Current: 0.03A

Speed: 3,700rpm

Current: 0.12A

Current: 0.41A

Torque: 24g.cm

OEM and customization are available

Compliant with the RoHS Directive

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small Tm)

High-torque at a low-speed

PTC protection

Phenolic resin base commutator

Epoxy coating armature

Lightweight and long lifespan

Our main products: diameter 6 to 52mm DC micro, auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration motors and more

Products size range: diameter 6-52mm

DC voltage range: 1.5 to 42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1 to 30,000rpm

Stall torque: 5g.cm to 30kg.cm

Home appliances, power tools, toys and models, precision instruments, office equipment, personal care products, automotive, audio and visual equipment and more

Suitable for RC models, toys and electric shavers
