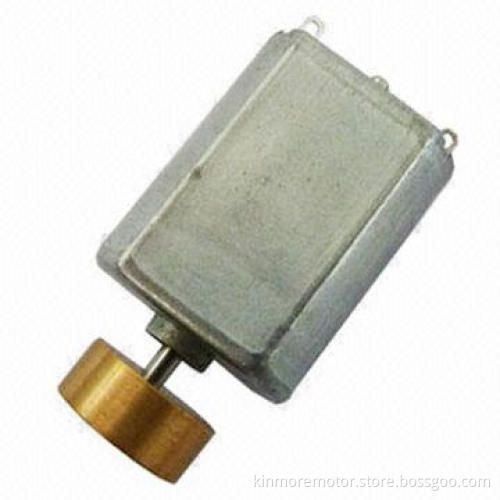

3V DC Vibrator Motor with Sized 10 x 6mm Gear Box, Ideal for Adult Toys and Massagers
  • 3V DC Vibrator Motor with Sized 10 x 6mm Gear Box, Ideal for Adult Toys and Massagers
3V DC Vibrator Motor with Sized 10 x 6mm Gear Box, Ideal for Adult Toys and Massagers

3V DC Vibrator Motor with Sized 10 x 6mm Gear Box, Ideal for Adult Toys and Massagers

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Gear box (D x H): 10.0 x 6.0mm
    • Motor housing size (D x F x L): 20.4 x 15.4 x 25.0mm
    • Housing material: SECD
    • Shaft (diameter): 2.0mm carbon steel, nickel coating
    • Way of commutation: carbon brush
    • Structure: 2 poles stator and 3 slots armature
    • Rotation: CW/CCW and reversible
    • Options: extended shaft on the end cap side, metal brushes andP magnet, EMI/EMC suppression
    • Ideal for adult toys and massagers
  • Technical performance data:
    • Rated voltage: 3V DC
    • On load:
      • Torque: Ø10.0 x 6.0 copper vibrator
      • Current: 0.28A
      • Speed: 5700rpm
    • At stall:
      • Current: 1.7A
    • Start voltage: d0.8V
    • Customized data requirements are welcomed
  • Packing:
    • Quantity: 350 pieces
    • Gross weight: 9.2kg
    • Dimensions: 41 x 27.5 x 12.5cm
  • Customization options:
    • OEM and customization are available
    • With the RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-clogging design
    • High-degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low-noise design
    • Fast response (small Tm)
    • High-torque at low-speed
    • PTC protection
    • Phenol resin base commentary
    • Epoxy coating armature
    • Lightweight and long lifespan
  • Gear box (D x H): 10.0 x 6.0mm
  • Motor housing size (D x F x L): 20.4 x 15.4 x 25.0mm
  • Housing material: SECD
  • Shaft (diameter): 2.0mm carbon steel, nickel coating
  • Way of commutation: carbon brush
  • Structure: 2 poles stator and 3 slots armature
  • Rotation: CW/CCW and reversible
  • Options: extended shaft on the end cap side, metal brushes andP magnet, EMI/EMC suppression
  • Ideal for adult toys and massagers
  • Rated voltage: 3V DC
  • On load:
    • Torque: Ø10.0 x 6.0 copper vibrator
    • Current: 0.28A
    • Speed: 5700rpm
  • At stall:
    • Current: 1.7A
  • Start voltage: d0.8V
  • Customized data requirements are welcomed
  • Torque: Ø10.0 x 6.0 copper vibrator
  • Current: 0.28A
  • Speed: 5700rpm
  • Current: 1.7A
  • Quantity: 350 pieces
  • Gross weight: 9.2kg
  • Dimensions: 41 x 27.5 x 12.5cm
  • OEM and customization are available
  • With the RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-clogging design
  • High-degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low-noise design
  • Fast response (small Tm)
  • High-torque at low-speed
  • PTC protection
  • Phenol resin base commentary
  • Epoxy coating armature
  • Lightweight and long lifespan
