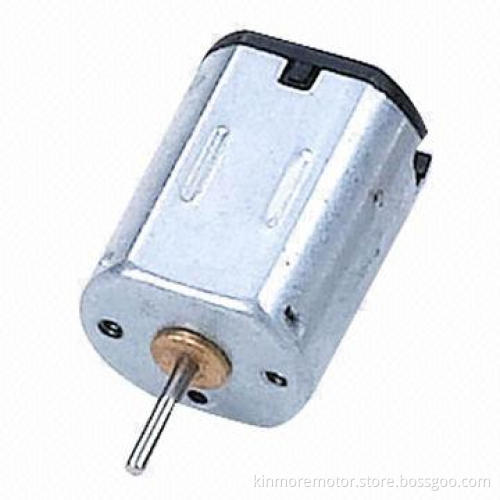

12V DC Electric Motor, 34,000rpm High-speed for Toys, RC Model, Door Lock Actuator
  • 12V DC Electric Motor, 34,000rpm High-speed for Toys, RC Model, Door Lock Actuator
12V DC Electric Motor, 34,000rpm High-speed for Toys, RC Model, Door Lock Actuator

12V DC Electric Motor, 34,000rpm High-speed for Toys, RC Model, Door Lock Actuator

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Specifications:
    • Motor housing (D x F x L): 8 x 6 x 10mm (material: second)
    • Shaft (diameter): 1.0mm carbon steel (nickel coating)
    • Way of commutation: metal brush
    • Structure: 2-pole stator and 3-slot armature
    • Magnet type: Nd-Fe-B
    • Rotation: CW/CCW and reversible
    • Options: EMI/EMC suppression, vibration
  • Technical performance data:
    • Rated voltage: 12V DC
    • Motor position: to be measured with motor horizontallyheld
    • Environmental temperature: +5 to +35
    • Environmental humidity: 40 to 85% RH
  • Electrical characteristics (at initial stage after 30 secondsrun-in):
    • At no loading:
      • Speed: 3,4000rpm ±10%
      • Current: 700mA
    • At maximum efficiency load:
      • Torque: 2.0g.cm
      • Speed: 31,000rpm ±10%
      • Current: 1.4A
    • At stall:
      • Torque: e16 g.cm
      • Current: d6000mA
    • Direction of rotation: CW (clockwise when viewing from theoutput shaft end with positive voltage applied to positiveterminal)
  • Mechanical characteristics:
    • End play: 0.05 to 0.35mm
    • Operating temperature: -10 to +60
  • Customization options:
    • OEM orders are available
    • With RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-clogging design
    • High-degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial GAP
    • Low-noise design
    • Fast response (small time)
    • High-torque at a low-speed
  • Motor housing (D x F x L): 8 x 6 x 10mm (material: second)
  • Shaft (diameter): 1.0mm carbon steel (nickel coating)
  • Way of commutation: metal brush
  • Structure: 2-pole stator and 3-slot armature
  • Magnet type: Nd-Fe-B
  • Rotation: CW/CCW and reversible
  • Options: EMI/EMC suppression, vibration
  • Rated voltage: 12V DC
  • Motor position: to be measured with motor horizontallyheld
  • Environmental temperature: +5 to +35
  • Environmental humidity: 40 to 85% RH
  • At no loading:
    • Speed: 3,4000rpm ±10%
    • Current: 700mA
  • At maximum efficiency load:
    • Torque: 2.0g.cm
    • Speed: 31,000rpm ±10%
    • Current: 1.4A
  • At stall:
    • Torque: e16 g.cm
    • Current: d6000mA
  • Direction of rotation: CW (clockwise when viewing from theoutput shaft end with positive voltage applied to positiveterminal)
  • Speed: 3,4000rpm ±10%
  • Current: 700mA
  • Torque: 2.0g.cm
  • Speed: 31,000rpm ±10%
  • Current: 1.4A
  • Torque: e16 g.cm
  • Current: d6000mA
  • End play: 0.05 to 0.35mm
  • Operating temperature: -10 to +60
  • OEM orders are available
  • With RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-clogging design
  • High-degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial GAP
  • Low-noise design
  • Fast response (small time)
  • High-torque at a low-speed
