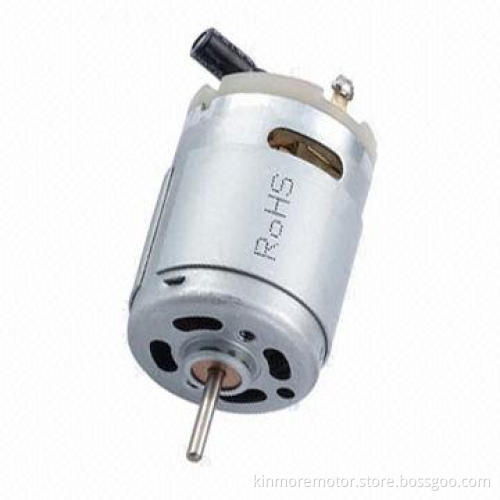

12V DC Motor for Power Tools, RC Cars and Vacuum Cleaners, 27.7 x 37.8mm Casing
  • 12V DC Motor for Power Tools, RC Cars and Vacuum Cleaners, 27.7 x 37.8mm Casing
12V DC Motor for Power Tools, RC Cars and Vacuum Cleaners, 27.7 x 37.8mm Casing

12V DC Motor for Power Tools, RC Cars and Vacuum Cleaners, 27.7 x 37.8mm Casing

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Specifications:
    • Material: SECD
    • Motor housing (D x L): 27.7 x 37.8mm
    • Shaft: 2.3mm carbon steel (nickel-coated)
    • Way of commutation: carbon leaf brush system
    • Structures: 2 poles stators and 3 slots armature
    • Insulation: class F magnet wire
    • Rotation: CW/CCW and reversible
    • EMC/EMI suppression: (optional)
    • Plastic end cap
    • Ball bearing on the driving sides are available
  • Technical performance data:
    • Rated voltage: 12.0V
    • No load speed: 10,000rpm
    • No load current: 0.23A
    • At maximum efficiency:
      • Speed: 8,558rpm
      • Current: 1.37A
      • Torque: 128.4g/cm
    • At stall:
      • Torque: 890g/cm
      • Current: 8.1A
    • Options: shaft length, technical data like voltage, speed,torque, optional EMI and EMC suppression
  • Packing:
    • Quantity: 300 pieces
    • Gross weight: 21kg
    • Dimensions: 35 x 24.3 x 23.8cm
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low noise design
  • Fast response (small Tm)
  • High torque at low speed
  • PTC protection
  • Penolic resin base commutator
  • Epoxy coating armature
  • Lightweight and long lifespan
  • Material: SECD
  • Motor housing (D x L): 27.7 x 37.8mm
  • Shaft: 2.3mm carbon steel (nickel-coated)
  • Way of commutation: carbon leaf brush system
  • Structures: 2 poles stators and 3 slots armature
  • Insulation: class F magnet wire
  • Rotation: CW/CCW and reversible
  • EMC/EMI suppression: (optional)
  • Plastic end cap
  • Ball bearing on the driving sides are available
  • Rated voltage: 12.0V
  • No load speed: 10,000rpm
  • No load current: 0.23A
  • At maximum efficiency:
    • Speed: 8,558rpm
    • Current: 1.37A
    • Torque: 128.4g/cm
  • At stall:
    • Torque: 890g/cm
    • Current: 8.1A
  • Options: shaft length, technical data like voltage, speed,torque, optional EMI and EMC suppression
  • Speed: 8,558rpm
  • Current: 1.37A
  • Torque: 128.4g/cm
  • Torque: 890g/cm
  • Current: 8.1A
  • Quantity: 300 pieces
  • Gross weight: 21kg
  • Dimensions: 35 x 24.3 x 23.8cm
