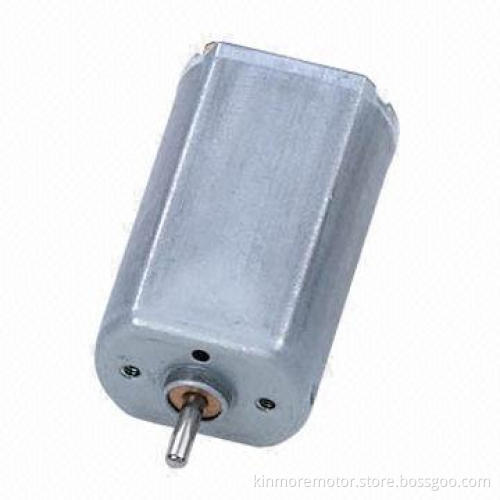

12V DC Micro Motor for Toothbrush, RC Toy and Razor, with 20.4 x 15.4 x 25mm Housing/2.0mm Shaft
  • 12V DC Micro Motor for Toothbrush, RC Toy and Razor, with 20.4 x 15.4 x 25mm Housing/2.0mm Shaft
12V DC Micro Motor for Toothbrush, RC Toy and Razor, with 20.4 x 15.4 x 25mm Housing/2.0mm Shaft

12V DC Micro Motor for Toothbrush, RC Toy and Razor, with 20.4 x 15.4 x 25mm Housing/2.0mm Shaft

Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Motor housing (D x F x L): 20.4 x 15.4 x 25.1mm (material:SECD)
    • Shaft (diameter): 1.5mm carbon steel (nickel coating)
    • Way of commutation: carbon brush
    • Structure: 2-pole stator and 3-slot armature
    • Rotation: CW/CCW and reversible
    • Options: EMI/EMC suppression, metal brushes, extended shaftfrom the end-cap side and Vibrator
  • Technical performance data:
    • Measuring conditions:
      • Rated voltage: 12V DC
      • Motor position: to be measured with motor horizontallyheld
      • Environmental temperature: 5 to 35°C
      • Environmental humidity: 40 to 85% RH
      • Staring voltage: d1.5V
    • Electrical characteristics (at initial stage after 30 secondsrun-in):
      • At no load:
        • Speed: 16600rpm ±10%
        • Current: d200mA
      • At on load:
        • Torque: 10g.cm
        • Speed: 15500rpm ±10%
        • Current: d380mA
      • At stall:
        • Torque: e110g.cm
        • Current: d2500mA
      • Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal)
    • Mechanical characteristics:
      • End play: 0.05 to 0.45mm
      • Operating temperature: -10 to 60°C
    • Customized data requirements are welcomed for our engineer'sevaluation
  • Applications: suitable for toothbrush, RC toy and razor
  • Motor housing (D x F x L): 20.4 x 15.4 x 25.1mm (material:SECD)
  • Shaft (diameter): 1.5mm carbon steel (nickel coating)
  • Way of commutation: carbon brush
  • Structure: 2-pole stator and 3-slot armature
  • Rotation: CW/CCW and reversible
  • Options: EMI/EMC suppression, metal brushes, extended shaftfrom the end-cap side and Vibrator
  • Measuring conditions:
    • Rated voltage: 12V DC
    • Motor position: to be measured with motor horizontallyheld
    • Environmental temperature: 5 to 35°C
    • Environmental humidity: 40 to 85% RH
    • Staring voltage: d1.5V
  • Electrical characteristics (at initial stage after 30 secondsrun-in):
    • At no load:
      • Speed: 16600rpm ±10%
      • Current: d200mA
    • At on load:
      • Torque: 10g.cm
      • Speed: 15500rpm ±10%
      • Current: d380mA
    • At stall:
      • Torque: e110g.cm
      • Current: d2500mA
    • Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal)
  • Mechanical characteristics:
    • End play: 0.05 to 0.45mm
    • Operating temperature: -10 to 60°C
  • Customized data requirements are welcomed for our engineer'sevaluation
  • Rated voltage: 12V DC
  • Motor position: to be measured with motor horizontallyheld
  • Environmental temperature: 5 to 35°C
  • Environmental humidity: 40 to 85% RH
  • Staring voltage: d1.5V
  • At no load:
    • Speed: 16600rpm ±10%
    • Current: d200mA
  • At on load:
    • Torque: 10g.cm
    • Speed: 15500rpm ±10%
    • Current: d380mA
  • At stall:
    • Torque: e110g.cm
    • Current: d2500mA
  • Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal)
  • Speed: 16600rpm ±10%
  • Current: d200mA
  • Torque: 10g.cm
  • Speed: 15500rpm ±10%
  • Current: d380mA
  • Torque: e110g.cm
  • Current: d2500mA
  • End play: 0.05 to 0.45mm
  • Operating temperature: -10 to 60°C
