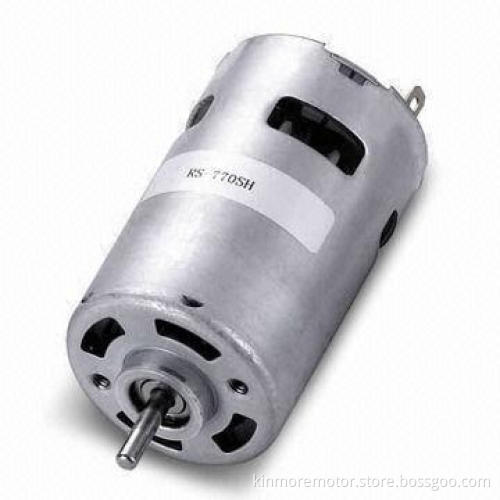

12V DC Motor for Cordless Power Tools, Oil Pumps and Fitness Apparatus
  • 12V DC Motor for Cordless Power Tools, Oil Pumps and Fitness Apparatus
12V DC Motor for Cordless Power Tools, Oil Pumps and Fitness Apparatus

12V DC Motor for Cordless Power Tools, Oil Pumps and Fitness Apparatus

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Specifications:
    • Motor housing size (D x L): 43.8 x 66mm
    • Housing material: SECD
    • Shaft: 5.0mm carbon steel (nickel-coated)
    • Way of commutation: carbon leaf brush system
    • Ball bearing on the driving sides is available
    • Structure: 2 poles stator and 3 slots armature
    • Insulation: class F magnet wire
    • Rotation: CW/CCW and reversible
    • Suitable for cordless power tools, oil pumps and fitnessapparatus
  • Performance:
    • Rated voltage: 12V DC
    • At no load:
      • Speed: 15,000rpm
      • Current: 2.2A
    • At maximum efficiency:
      • Speed: 13,177rpm
      • Current: 15.92A
      • Torque: 826.2g/cm
    • At stall:
      • Current: 115A
      • Torque: 6.8kg/cm
    • Options: shaft length, technical data like voltage, speed,torque, EMI and EMC suppression
  • Packing:
    • Quantity: 42 pieces
    • Gross weight: 15.3kg
    • Dimensions: 41.0 x 27.5 x 18.0cm
  • Customization options:
  • OEM and customization are accepted
  • Compliant with the RoHS Directive
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low noise design
  • Fast response (small Tm)
  • High torque at a low speed
  • PTC protection
  • Penolic resin Base commutator
  • Epoxy coating armature
  • Lightweight and long lifespan
  • Motor housing size (D x L): 43.8 x 66mm
  • Housing material: SECD
  • Shaft: 5.0mm carbon steel (nickel-coated)
  • Way of commutation: carbon leaf brush system
  • Ball bearing on the driving sides is available
  • Structure: 2 poles stator and 3 slots armature
  • Insulation: class F magnet wire
  • Rotation: CW/CCW and reversible
  • Suitable for cordless power tools, oil pumps and fitnessapparatus
  • Rated voltage: 12V DC
  • At no load:
    • Speed: 15,000rpm
    • Current: 2.2A
  • At maximum efficiency:
    • Speed: 13,177rpm
    • Current: 15.92A
    • Torque: 826.2g/cm
  • At stall:
    • Current: 115A
    • Torque: 6.8kg/cm
  • Options: shaft length, technical data like voltage, speed,torque, EMI and EMC suppression
  • Speed: 15,000rpm
  • Current: 2.2A
  • Speed: 13,177rpm
  • Current: 15.92A
  • Torque: 826.2g/cm
  • Current: 115A
  • Torque: 6.8kg/cm
  • Quantity: 42 pieces
  • Gross weight: 15.3kg
  • Dimensions: 41.0 x 27.5 x 18.0cm
