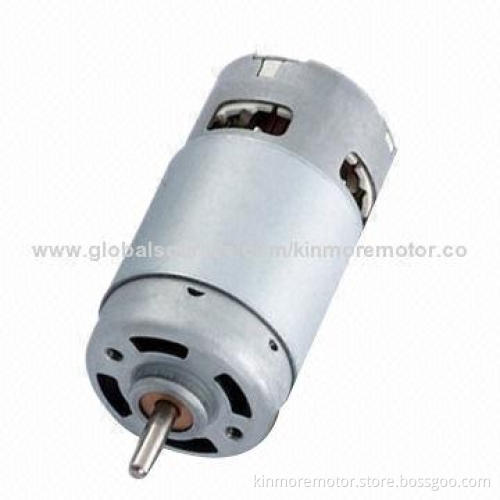

Electrical Motor, Housing Sized 45 x 75mm, Suitable for Cordless Power Tools and Air Pump
  • Electrical Motor, Housing Sized 45 x 75mm, Suitable for Cordless Power Tools and Air Pump
Electrical Motor, Housing Sized 45 x 75mm, Suitable for Cordless Power Tools and Air Pump

Electrical Motor, Housing Sized 45 x 75mm, Suitable for Cordless Power Tools and Air Pump

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Specifications:
    • Motor housing size (D x L): 45 x 75mm
    • Material: SECD
    • Shaft: Ø5.0mm carbon steel (nickel-coated)
    • Way of commutation: carbon leaf brush system
    • EMC/EMI suppression: optional
    • Ball bearing on the driving sides is available
    • Performance:
      • Rated voltage: 12V DC
      • At no load:
        • Speed: 7,200rpm
        • Current: 0.65A
      • At maximum efficiency:
        • Speed: 6,182rpm
        • Current: 3.95A
        • Torque: 59.61mNm
        • Output: 38.55W
      • At stall:
        • Current: 24A
        • Torque: 422mNm
        • Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression
    • Structure: 2-pole stator and 3-slot armature
    • Insulation: class F magnet wire
    • Rotation: CW/CCW and reversible
    • Suitable for cordless power tools and air pump
  • Motor housing size (D x L): 45 x 75mm
  • Material: SECD
  • Shaft: Ø5.0mm carbon steel (nickel-coated)
  • Way of commutation: carbon leaf brush system
  • EMC/EMI suppression: optional
  • Ball bearing on the driving sides is available
  • Performance:
    • Rated voltage: 12V DC
    • At no load:
      • Speed: 7,200rpm
      • Current: 0.65A
    • At maximum efficiency:
      • Speed: 6,182rpm
      • Current: 3.95A
      • Torque: 59.61mNm
      • Output: 38.55W
    • At stall:
      • Current: 24A
      • Torque: 422mNm
      • Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression
  • Structure: 2-pole stator and 3-slot armature
  • Insulation: class F magnet wire
  • Rotation: CW/CCW and reversible
  • Suitable for cordless power tools and air pump
  • Rated voltage: 12V DC
  • At no load:
    • Speed: 7,200rpm
    • Current: 0.65A
  • At maximum efficiency:
    • Speed: 6,182rpm
    • Current: 3.95A
    • Torque: 59.61mNm
    • Output: 38.55W
  • At stall:
    • Current: 24A
    • Torque: 422mNm
    • Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression
  • Speed: 7,200rpm
  • Current: 0.65A
  • Speed: 6,182rpm
  • Current: 3.95A
  • Torque: 59.61mNm
  • Output: 38.55W
  • Current: 24A
  • Torque: 422mNm
  • Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression
