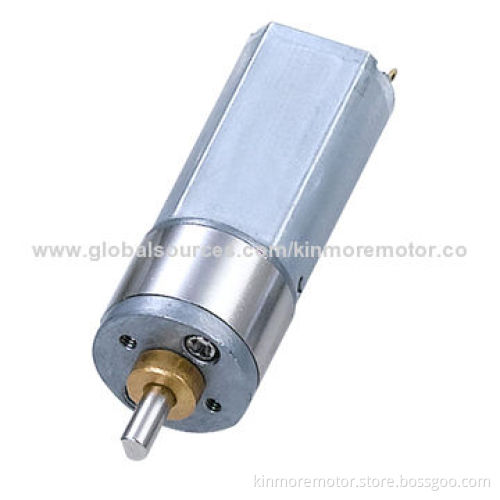

Micro geared motor with high torque, low speed for actuator, robot, electric lock and armarium

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Measuring conditions:

Rated voltage: 6V DC

Motor position: to be measured with motor horizontally held

Environmental temperature: 25 ±10℃

Environmental humidity: 65 ±20% RH

Electrical characteristics:

At no load:

Speed: 15 ±12%rpm

Current: 0.067A (maximum 0.14A)

At on load:

Torque: 2.1kg.cm

Speed: 11.7 ±12%rpm

Current: 0.19A (maximum 0.38A)

Direction of rotation: CCW (counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)

Mechanical characteristics:

Dimensions drawing: see

End play: 0.5mm (maximum)

Operating temperature: -10 - +60℃

Features:

Bi-direction rotation

Metal or carbon brush

Spur gears

Zinc die cast gear case

Sleeve bronze bushing

Typical application:

Armarium

Actuator

Robot

Electric Lock

About us:

Main products: auto DC, electric, gear, DC, brush DC, spurgear, micro, vibration and more motors

Product size range: 6 - 52mm, diameter

DC voltage range: 1.5 - 42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1 - 30,000rpm

Stall torque: 5 - 30kg.cm

Applications: home appliance, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment and more

Our service:

OEM and customization are available

ROHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small Tm)

High-torque at a low-speed

PTC protection

Penolic resin base commutator

Epoxy coating armature

Lightweight and long lifespan
