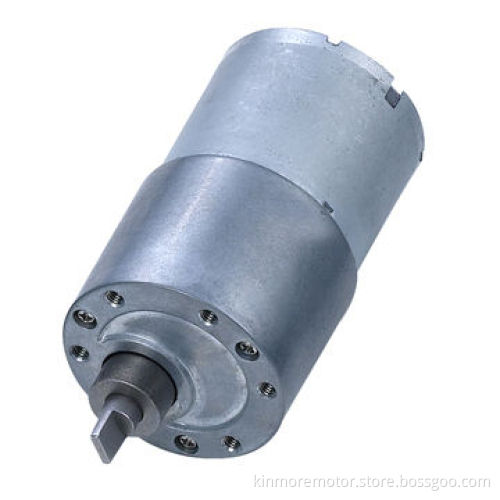

Micro Gear Motor, Use for Robots, Satellites, Valves, Vending Machines, Robot, Dispenser and so on
  • Micro Gear Motor, Use for Robots, Satellites, Valves, Vending Machines, Robot, Dispenser and so on
Micro Gear Motor, Use for Robots, Satellites, Valves, Vending Machines, Robot, Dispenser and so on

Micro Gear Motor, Use for Robots, Satellites, Valves, Vending Machines, Robot, Dispenser and so on

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Dimension of the motor:
    • Diameter of the motor: 34.6mm
    • Length of the motor: 30.8mm
    • Diameter of the gearbox: 37mm
    • Diameter of the shaft: 6mm
  • Performance of the motor:
    • Ratio: 1/70
    • Voltages:
      • Operating voltages: 6.0-12.0V
      • Nominal voltage: 12.0V
    • No load:
      • Speed: 86.4rpm
      • Current: 0.08A
    • On load:
      • Current: 0.26A
      • Torque: 1.5kg.cm
      • Speed: 77.3rpm
  • Features of the motor:
    • Bi-direction
    • Carbon brush DC motor
    • Spur gears
    • Zinc die cast gear case
    • Sleeve bronze bushing
  • Typical applications:
    • Vending machine, power tool, dispenser, satellite, robot, valve, model and so on
  • About us:
    • Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
    • Product size range: 6 - 52mm, diameter
    • DC voltage range: 1.5 - 42V
    • AC rectify: 100, 110, 220, 230, 240V and more
    • Speed range: 1 - 30,000RPM
    • Stall torque: 5g.cm - 30kg.cm
  • Our services:
    • OEM and customization are available
    • With RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High-degree of protection
    • Small mechnical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low-noise design
    • Fast response (small Tm)
    • High-torque at a low-speed
    • PTC protection
    • Penolic resin base commutator
    • Epoxy coating armature
    • Lightweight and long lifespan
  • Diameter of the motor: 34.6mm
  • Length of the motor: 30.8mm
  • Diameter of the gearbox: 37mm
  • Diameter of the shaft: 6mm
  • Ratio: 1/70
  • Voltages:
    • Operating voltages: 6.0-12.0V
    • Nominal voltage: 12.0V
  • No load:
    • Speed: 86.4rpm
    • Current: 0.08A
  • On load:
    • Current: 0.26A
    • Torque: 1.5kg.cm
    • Speed: 77.3rpm
  • Operating voltages: 6.0-12.0V
  • Nominal voltage: 12.0V
  • Speed: 86.4rpm
  • Current: 0.08A
  • Current: 0.26A
  • Torque: 1.5kg.cm
  • Speed: 77.3rpm
  • Bi-direction
  • Carbon brush DC motor
  • Spur gears
  • Zinc die cast gear case
  • Sleeve bronze bushing
  • Vending machine, power tool, dispenser, satellite, robot, valve, model and so on
  • Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
  • Product size range: 6 - 52mm, diameter
  • DC voltage range: 1.5 - 42V
  • AC rectify: 100, 110, 220, 230, 240V and more
  • Speed range: 1 - 30,000RPM
  • Stall torque: 5g.cm - 30kg.cm
  • OEM and customization are available
  • With RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degree of protection
  • Small mechnical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low-noise design
  • Fast response (small Tm)
  • High-torque at a low-speed
  • PTC protection
  • Penolic resin base commutator
  • Epoxy coating armature
  • Lightweight and long lifespan
