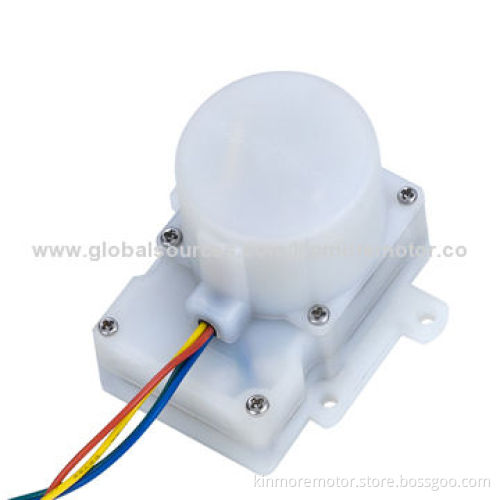

3V DC Gear Motor with 1.4rpm Speed for Water Meter, EMI Suppression

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Gears: copper and powder metallurgy gears
Way of commutation: metal brushes
Gearbox size (W x L x H): 56 x 53 x 18mm
Material of gear box: plastic gearbox
DC motor size (D x L): 36 x 24.5mm
Gear ratio: 1/500

Technical performance data:

Nominal voltage: 3V
No load speed: 1.6rpm
No load current: 0.04A
On load torque: 3.0kg/cm
On load speed: 1.4rpm
On load current: 0.07A
Ideal for prepaid water meter and valve

Customization options:

OEM and customization are available
With RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degrees of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at a low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan

Inspection to guarantee reliable quality:

Inspection occurs throughout the whole process flow
Unitizing Hexagon CMM, X-ray spectrometer, MEA motor performance testing system, tension tester, torque tester, motor performance testing system and other geometrical testing equipment, we perform a battery of inspections from tooling, material to finished products as below:
- Tooling inspection
- Material lot acceptance inspection
- Material lifespan test
- First article inspection
- Operator self-inspection
- Random inspection
- 100% inspection to key process and motor electric performance
- Final inspection
- Outgoing inspection
