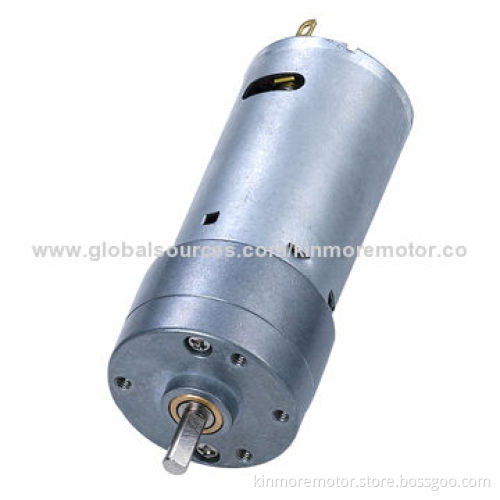

Geared DC Motor with Low-speed, High-torque for Vending Machines, Toy, Robot and ATM Machines
  • Geared DC Motor with Low-speed, High-torque for Vending Machines, Toy, Robot and ATM Machines
Geared DC Motor with Low-speed, High-torque for Vending Machines, Toy, Robot and ATM Machines

Geared DC Motor with Low-speed, High-torque for Vending Machines, Toy, Robot and ATM Machines

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Gearbox (D x L): 27.5 x 27 to 37mm (length varies with ratio)
    • Shaft diameter: 6mm with custom made D-shaped and length
    • DC motor (D x L): 27.7 x 46.5mm
    • Direction of rotation: CCW/CW
    • End play: 0.05 to 0.5mm
    • Install: 2 x M3 distance 19mm screw holes
  • Technical data:
    • Rated voltage: 12V
    • No load speed: 1512rpm
    • No load current: 0.54A
    • On load speed: 1170rpm
    • On load torque: 1kg.cm
    • On load current: 2.3A
  • About our products:
    • Our products range: motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor and more
    • Products size range: Ø6 to 66mm
    • Voltage range: 1.5 to 42V DC
    • AC rectify: 100, 110, 220, 230, 240V and more
    • Speed range: 1 to 30,000rpm
    • Stall torque: 5g.cm to 30kg.cm
  • Constructions of motor:
    • 2-pole stator
    • Sr ferrite permanent magnet
    • 3, 5, 7, 8, 9, 12 slots armature
    • Silicon steel lamination with epoxy coating
    • High-carbon steel shaft
    • Cu-Ag alloys commutator
    • Copper graphite brushes
    • Cu leaf-brush commutating system
    • SECD round/flat-shaped housing
    • SECD end cap/PA66 + fiber end cap
    • Cylinder (self-aligning) sintered bush
    • 155 degrees (class F) copper wire
    • OEM orders are welcomed
    • Compliant with RoHS Directive
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High-degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low-noise design
    • Fast response (small Tm)
    • High-torque at a low-speed
    • PTC protection
    • Phenolic resin base commutator
    • Epoxy coating armature
    • Lightweight and long lifespan
  • Gearbox (D x L): 27.5 x 27 to 37mm (length varies with ratio)
  • Shaft diameter: 6mm with custom made D-shaped and length
  • DC motor (D x L): 27.7 x 46.5mm
  • Direction of rotation: CCW/CW
  • End play: 0.05 to 0.5mm
  • Install: 2 x M3 distance 19mm screw holes
  • Rated voltage: 12V
  • No load speed: 1512rpm
  • No load current: 0.54A
  • On load speed: 1170rpm
  • On load torque: 1kg.cm
  • On load current: 2.3A
  • Our products range: motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor and more
  • Products size range: Ø6 to 66mm
  • Voltage range: 1.5 to 42V DC
  • AC rectify: 100, 110, 220, 230, 240V and more
  • Speed range: 1 to 30,000rpm
  • Stall torque: 5g.cm to 30kg.cm
  • 2-pole stator
  • Sr ferrite permanent magnet
  • 3, 5, 7, 8, 9, 12 slots armature
  • Silicon steel lamination with epoxy coating
  • High-carbon steel shaft
  • Cu-Ag alloys commutator
  • Copper graphite brushes
  • Cu leaf-brush commutating system
  • SECD round/flat-shaped housing
  • SECD end cap/PA66 + fiber end cap
  • Cylinder (self-aligning) sintered bush
  • 155 degrees (class F) copper wire
  • OEM orders are welcomed
  • Compliant with RoHS Directive
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low-noise design
  • Fast response (small Tm)
  • High-torque at a low-speed
  • PTC protection
  • Phenolic resin base commutator
  • Epoxy coating armature
  • Lightweight and long lifespan
