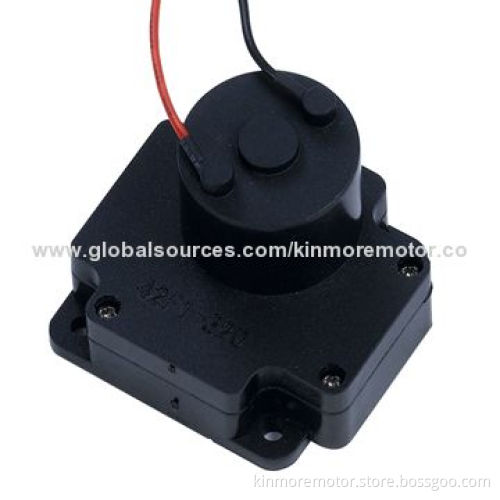

3V DC Gear Motor for Water Meters with 1.6rpm Speed
  • 3V DC Gear Motor for Water Meters with 1.6rpm Speed
3V DC Gear Motor for Water Meters with 1.6rpm Speed

3V DC Gear Motor for Water Meters with 1.6rpm Speed

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Gears: spur metal gears
    • Way of commutation: carbon brush system
    • Shaft diameter: parallel 8mm
    • Gearbox (W x L x H): 47 x 42 x 15.7mm (die-casting zinc material)
    • DC motor (D x L): 26.6 x 18.2mm
    • Gear ratio: 1/14.6, 1/29, 1/37, 1/189, 1/244, 1/158, 1/531, 1/554, 1/609 and 1/1,483
  • Technical performance data:
    • Nominal voltage: 3V
    • No loading speed: 1.6rpm
    • No loading current: 0.06A (maximum)
  • Customization options:
    • OEM and customization are available
    • With RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High-degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low-noise design
    • Fast response (small Tm)
    • High-torque at a low-speed
    • PTC protection
    • Penolic resin base commutator
    • Epoxy coating armature
    • Lightweight and long lifespan
  • Gears: spur metal gears
  • Way of commutation: carbon brush system
  • Shaft diameter: parallel 8mm
  • Gearbox (W x L x H): 47 x 42 x 15.7mm (die-casting zinc material)
  • DC motor (D x L): 26.6 x 18.2mm
  • Gear ratio: 1/14.6, 1/29, 1/37, 1/189, 1/244, 1/158, 1/531, 1/554, 1/609 and 1/1,483
  • Nominal voltage: 3V
  • No loading speed: 1.6rpm
  • No loading current: 0.06A (maximum)
  • OEM and customization are available
  • With RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low-noise design
  • Fast response (small Tm)
  • High-torque at a low-speed
  • PTC protection
  • Penolic resin base commutator
  • Epoxy coating armature
  • Lightweight and long lifespan
