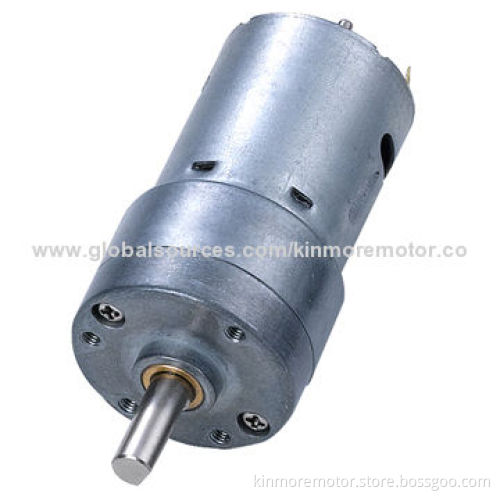

12V DC Gear Motor for Vending Machines, Garden Tools, Electric Locks with 32mm Gearbox

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Gearbox diameter: 32mm
Material: die-casting zinc
Shaft (D): 6mm inline carbon steel shaft with customized D-shape and length
DC motor (D x L): Φ27.7 x 32.6mm
Rotation: CCW/CW, reversible
Gears: spur metal gears
Lubrication: grease filled
Way of commutation: carbon brush
Reduction ratios are available: 1/15, 1/17.3, 1/40, 1/46, 1/51.8, 1/105, 1/136, 1/155, 1/278, 1/316, 1/409, 1/466, 1/732, 1/1,228, 1/1.397.3

Technical data:

Ratio: 1/278
Voltage: 12V DC
At no load:
- Speed: 15.5rpm
- Current: 0.1A (maximum)
On load:
- Speed: 12rpm
- Current: 0.25A (maximum)
- Torque: 6kg.cm

Option:

Technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length

Packing:

Quantity: 96 pieces
Gross weight: 13.7kg
Dimensions: 40.5 x 28.8 x 24.5cm

Learn more about our products:

Our main products: Ø6-52mm DC micro motor and gear motor, auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor
Products size range: Ø6-52mm
DC voltage range: 1.5-42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1-30,000rpm
Stall torque: 5g.cm-30kg.cm

Applications:

Home appliances, power tools, toys and model, precision instruments, office equipment, personal care products, automotive, audio and visual equipment

We assure our products in high quality, economical price and all round services after sale

Gearbox diameter: 32mm

Material: die-casting zinc

Shaft (D): 6mm inline carbon steel shaft with customized D-shape and length

DC motor (D x L): Φ27.7 x 32.6mm

Rotation: CCW/CW, reversible

Gears: spur metal gears

Lubrication: grease filled

Way of commutation: carbon brush

Reduction ratios are available: 1/15, 1/17.3, 1/40, 1/46, 1/51.8, 1/105, 1/136, 1/155, 1/278, 1/316, 1/409, 1/466, 1/732, 1/1,228, 1/1.397.3

Ratio: 1/278

Voltage: 12V DC

At no load:

Speed: 15.5rpm
Current: 0.1A (maximum)

On load:

Speed: 12rpm
Current: 0.25A (maximum)
Torque: 6kg.cm

Speed: 15.5rpm

Current: 0.1A (maximum)

Speed: 12rpm

Current: 0.25A (maximum)

Torque: 6kg.cm

Technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length

Quantity: 96 pieces

Gross weight: 13.7kg

Dimensions: 40.5 x 28.8 x 24.5cm

Our main products: Ø6-52mm DC micro motor and gear motor, auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor

Products size range: Ø6-52mm

DC voltage range: 1.5-42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1-30,000rpm

Stall torque: 5g.cm-30kg.cm

Home appliances, power tools, toys and model, precision instruments, office equipment, personal care products, automotive, audio and visual equipment
