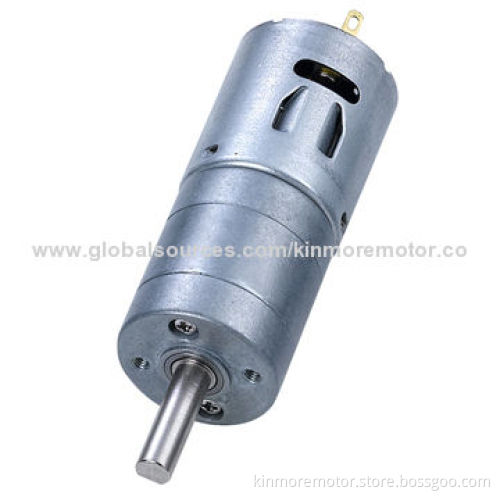

12V DC Gear Motor for Vending Machine, ATM Machine, Toy, Robot, Cleaning Brush with 27.5mm Gearbox
  • 12V DC Gear Motor for Vending Machine, ATM Machine, Toy, Robot, Cleaning Brush with 27.5mm Gearbox
12V DC Gear Motor for Vending Machine, ATM Machine, Toy, Robot, Cleaning Brush with 27.5mm Gearbox

12V DC Gear Motor for Vending Machine, ATM Machine, Toy, Robot, Cleaning Brush with 27.5mm Gearbox

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Gearbox: Ø27.5mm
    • Material: die-casting zinc
    • Shaft: Ø6mm inline carbon steel shaft with custom D-shape and length
    • Motor size (D x L): Φ27.7 x 32.6mm
    • Rotation: CCW/CW, reversible
    • Gears: spur metal gears
    • Lubrication: grease filled
    • Way of commutation: carbon brush
    • Reduction ratio: 1/6.4, 1//8.2, 1/14.5, 1/18.6, 1/33, 1/42.3,1/75, 1/96.3, 1/170, 1/219, 1/378/, 1/497
  • Performance:
    • Ratio: 1/18.6
    • Voltage: 12VDC
    • At no load:
      • Speed: 338rpm
      • Current: 0.13A
    • At on load:
      • Speed: 270rpm
      • Current: 0.32A
      • Torque: 0.62kg.cm
    • Optional functions: technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length
  • Applications:
    • Suitable for vending machines/robots/car readers
  • Customization options:
    • OEM and customization are available
    • With the RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High-degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low-noise design
    • Fast response (small Tm)
    • High-torque at a low-speed
    • PTC protection
    • Penolic resin base commentator
    • Epoxy coating armature
    • Lightweight and long lifespan
  • Gearbox: Ø27.5mm
  • Material: die-casting zinc
  • Shaft: Ø6mm inline carbon steel shaft with custom D-shape and length
  • Motor size (D x L): Φ27.7 x 32.6mm
  • Rotation: CCW/CW, reversible
  • Gears: spur metal gears
  • Lubrication: grease filled
  • Way of commutation: carbon brush
  • Reduction ratio: 1/6.4, 1//8.2, 1/14.5, 1/18.6, 1/33, 1/42.3,1/75, 1/96.3, 1/170, 1/219, 1/378/, 1/497
  • Ratio: 1/18.6
  • Voltage: 12VDC
  • At no load:
    • Speed: 338rpm
    • Current: 0.13A
  • At on load:
    • Speed: 270rpm
    • Current: 0.32A
    • Torque: 0.62kg.cm
  • Optional functions: technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length
  • Speed: 338rpm
  • Current: 0.13A
  • Speed: 270rpm
  • Current: 0.32A
  • Torque: 0.62kg.cm
  • Suitable for vending machines/robots/car readers
  • OEM and customization are available
  • With the RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low-noise design
  • Fast response (small Tm)
  • High-torque at a low-speed
  • PTC protection
  • Penolic resin base commentator
  • Epoxy coating armature
  • Lightweight and long lifespan
