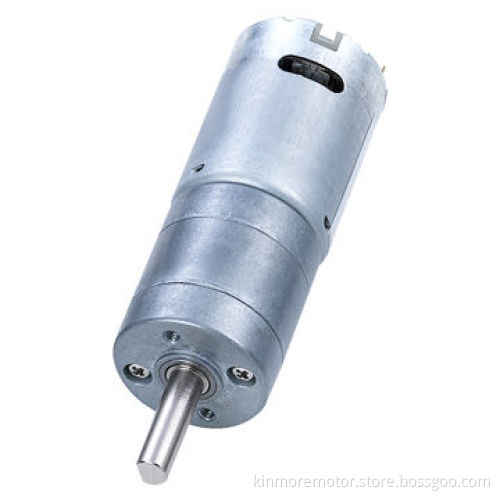

12V DC motor with gear reduction for sale
  • 12V DC motor with gear reduction for sale
12V DC motor with gear reduction for sale

12V DC motor with gear reduction for sale

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Measuring conditions:
    • Rated voltage: 12  V DC
    • Motor position: To be measured with motor horizontally held
    • Environmental temperatures: 25±10℃
    • Environmental humidity range: 65%±20%RH
  • Electrical characteristics (At initial stage after 30 seconds run-in):
    • At no load
    • Speed: 2488 ±12%rpm
    • Current: 0.42  A(max 0.84A)
    • At on load
    • Torque: 0.3 kg.cm
    • Speed: 2036 ±12%rpm
    • Current: 1.2  A (max 1.8A)
    • Direction of rotation: CCW (Counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal）
  • Mechanical characteristics:
    • Dimension drawing: See<OUTLINE>
    • End play: 0.5mm MAX
    • Operating temperatures: -10-+60℃
  • Rated voltage: 12  V DC
  • Motor position: To be measured with motor horizontally held
  • Environmental temperatures: 25±10℃
  • Environmental humidity range: 65%±20%RH
  • At no load
  • Speed: 2488 ±12%rpm
  • Current: 0.42  A(max 0.84A)
  • At on load
  • Torque: 0.3 kg.cm
  • Speed: 2036 ±12%rpm
  • Current: 1.2  A (max 1.8A)
  • Direction of rotation: CCW (Counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal）
  • Dimension drawing: See<OUTLINE>
  • End play: 0.5mm MAX
  • Operating temperatures: -10-+60℃
