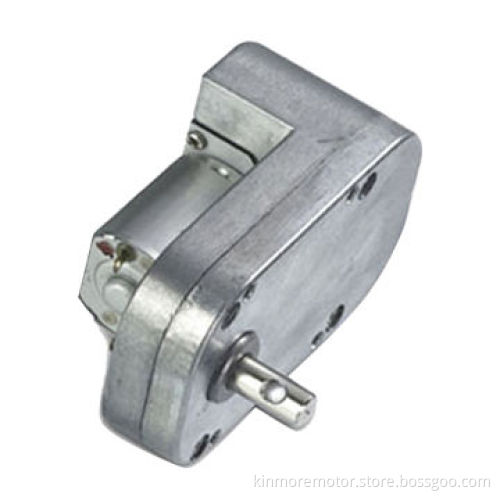

6V 12V DC geared reduction motor for valve and RC toy

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Features:

Technical data:

Typical application:

Bi-direction

Metal or carbon brush DC motor

Spur Gears

Zinc die-cast gear case

Sleeve bronze bushing

Weight: 192g(APPROX)

Gear box size(L*W*H): 64 x 38 x 29mm

Motor dimension(D*L*H): 20.4mm* 25mm* 15.4mm

Number of stage: 6

Reduction ratio: 1/766

Operating Range: 6.0-12.0V

Nominal voltage: 12V

No load current: 0.04A

No load speed: 9.4 RPM

On load current: 0.13A

On load torque: 4Kg.cm

On load speed: 8RPM

Shaft Length can be regulated

Vending machine

Business machine

Duplicating machine

Value

RC model
