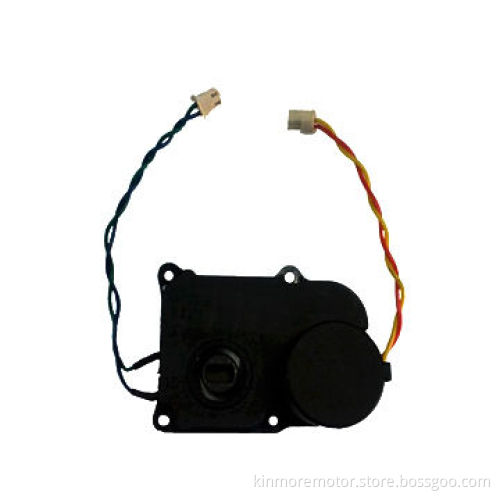

3V waterproof DC gear motor for prepaid electricity meter

3V waterproof DC gear motor for prepaid electricity meter

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Measuring conditions:

Rated voltage: 3V DC
Motor position: to be measured with motor horizontally held
Environment temperature: 25 ± 10
Environment humidity: 65% ±20% RH

Material and outline dimension

Material of gear case: Nylon glass fiber gear case
Material of gears: Copper and powder metallurgy gears
Brush: Metal brush
Gear box size (L*W*H): 64.5* 49*32.1mm
Motor size（D*L): 26.4*17.0mm

Electrical sharacteristics:

At no load:
- Speed: 2.5± 12% rpm
- Current: 0.06A
At on load:
- Torque: 6kg.cm
- Speed: 2.1± 12% rpm
- Current: 0.19A

Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positive terminal)

Mechanical characteristics:

End play: 0.5mm (maximum)
Operating temperatures: -10 to 60

Applications:

Home appliances, power tools, toys and models, precisioninstrument, office equipment, personal care product, automotive, audio and visual equipment and more

Rated voltage: 3V DC

Motor position: to be measured with motor horizontally held

Environment temperature: 25 ± 10

Environment humidity: 65% ±20% RH

Material of gear case: Nylon glass fiber gear case

Material of gears: Copper and powder metallurgy gears

Brush: Metal brush

Gear box size (L*W*H): 64.5* 49*32.1mm

Motor size（D*L): 26.4*17.0mm

At no load:

Speed: 2.5± 12% rpm
Current: 0.06A

At on load:

Torque: 6kg.cm
Speed: 2.1± 12% rpm
Current: 0.19A

Speed: 2.5± 12% rpm

Current: 0.06A

Torque: 6kg.cm

Speed: 2.1± 12% rpm

Current: 0.19A

End play: 0.5mm (maximum)

Operating temperatures: -10 to 60

Home appliances, power tools, toys and models, precisioninstrument, office equipment, personal care product, automotive, audio and visual equipment and more
