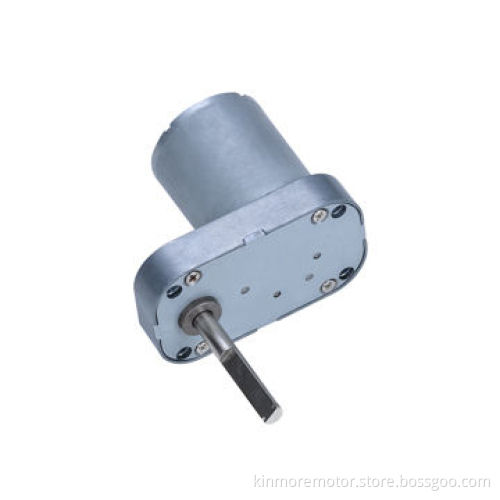

Parallel shaft 12V DC electric model and vacuum cleaner reduction geared motor
  • Parallel shaft 12V DC electric model and vacuum cleaner reduction geared motor
  • Parallel shaft 12V DC electric model and vacuum cleaner reduction geared motor
Parallel shaft 12V DC electric model and vacuum cleaner reduction geared motor
Parallel shaft 12V DC electric model and vacuum cleaner reduction geared motor

Parallel shaft 12V DC electric model and vacuum cleaner reduction geared motor

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Gearbox: 38 x 64.4 x 12mm
    • Material: die-casting zinc
    • Shaft: 6mm parallel carbon steel shaft with custom direction (left or right or both), D shape and length are customized
    • Ratio: 1/105
    • DC motor: Ø: 34.5 x L: 40mm
    • Rotation: CCW/CW, reversible
    • Gears: spur metal or plastic gears
    • Lubrication: grease filled
    • Way of commutation: carbon brush
    • Reduction ratio: 1/20.6, 1/36, 1/40, 1/60, 1/67, 1/78, 1/96,1/155.5, 1/178, 1/225 and 1/446
  • Technical data:
    • Voltage: 12V DC
    • At no loading:
      • Speed: 110.7rpm
      • Current: 0.3A
    • At 8kg/cm loading:
      • Speed: 93rpm
      • Current: 1.3A
  • Optional functions:
    • Technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length
  • Customization options:
    • OEM orders and customized designs are accepted
  • Features:
    • Compliant with the RoHS Directive
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low noise design
    • Fast response (small Tm)
    • High torque at low speed
    • PTC protection
    • Penolic resin base commutator
    • Epoxy coating armature
    • Lightweight and long life
  • Learn more about our products:
    • Main products: DC micro/gear motor, auto DC motor, electricmotor, brush DC motor, spur gear motor, micro motor, vibration motor and more
    • Products size range: Diameter: 6 to 52mm
    • DC voltage range: 1.5 to 42V
    • AC rectify: 100V, 110V, 220V, 230V, 240V and more
    • Speed range: 1 to 30,000rpm
    • Stall torque: 5 to 30kg.cm
  • Applications:
    • Home appliances, power tools, toys/models,precision instrument, office equipment, personal care product,automotive, audio/visual equipment
  • Gearbox: 38 x 64.4 x 12mm
  • Material: die-casting zinc
  • Shaft: 6mm parallel carbon steel shaft with custom direction (left or right or both), D shape and length are customized
  • Ratio: 1/105
  • DC motor: Ø: 34.5 x L: 40mm
  • Rotation: CCW/CW, reversible
  • Gears: spur metal or plastic gears
  • Lubrication: grease filled
  • Way of commutation: carbon brush
  • Reduction ratio: 1/20.6, 1/36, 1/40, 1/60, 1/67, 1/78, 1/96,1/155.5, 1/178, 1/225 and 1/446
  • Voltage: 12V DC
  • At no loading:
    • Speed: 110.7rpm
    • Current: 0.3A
  • At 8kg/cm loading:
    • Speed: 93rpm
    • Current: 1.3A
  • Speed: 110.7rpm
  • Current: 0.3A
  • Speed: 93rpm
  • Current: 1.3A
  • Technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length
  • OEM orders and customized designs are accepted
  • Compliant with the RoHS Directive
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low noise design
  • Fast response (small Tm)
  • High torque at low speed
  • PTC protection
  • Penolic resin base commutator
  • Epoxy coating armature
  • Lightweight and long life
  • Main products: DC micro/gear motor, auto DC motor, electricmotor, brush DC motor, spur gear motor, micro motor, vibration motor and more
  • Products size range: Diameter: 6 to 52mm
  • DC voltage range: 1.5 to 42V
  • AC rectify: 100V, 110V, 220V, 230V, 240V and more
  • Speed range: 1 to 30,000rpm
  • Stall torque: 5 to 30kg.cm
  • Home appliances, power tools, toys/models,precision instrument, office equipment, personal care product,automotive, audio/visual equipment
