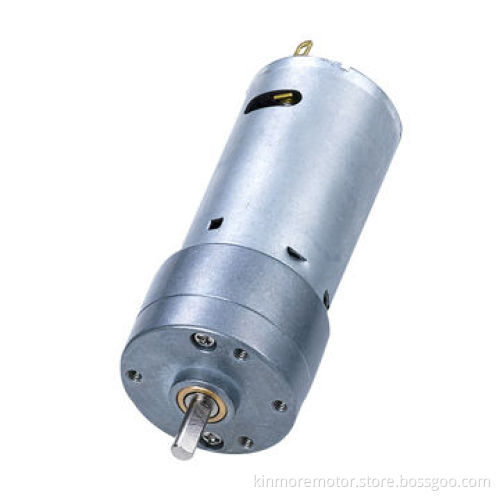

24 Volt Spur DC Reducer Gear Motor for Garden and Power Tool
  • 24 Volt Spur DC Reducer Gear Motor for Garden and Power Tool
24 Volt Spur DC Reducer Gear Motor for Garden and Power Tool

24 Volt Spur DC Reducer Gear Motor for Garden and Power Tool

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    1. Gearbox(Ø x L): 32 x 20.4mm
    2. Material: die casting zinc
    3. Shaft: Ø6mm inline carbon steel shaft with customized D-shaped and length
    4. DC motor (Ø x L): 27.7 x 46.5mm
    5. Rotation: CCW/CW, reversible
    6. Gears: spur metal gears
    7. Lubrication: grease filled
    8. Way of commutation: carbon brush
    9. Reduction ratio: 1/15, 1/17.3, 1/40, 1/46, 1/51.8, 1/105,1/136, 1/155, 1/278, 1/316, 1/409, 1/466, 1/732, 1/1,228 and1/1.397.3
    10. Suitable for vending machines, robots and car readers
  • Performance:
    • Ratio: 1/40
    • Voltage: 24V DC
    • At no load:
      • Speed: 390.1rpm
      • Current: 0.21A
    • At 3kg.cm load:
      • Speed: 333.4rpm
      • Current: 0.95A
  • Options:
    • Technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length
  • Customization options:
    • OEM and customization are accepted
    • RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low noise design
    • Fast response (small Tm)
    • High torque at a low speed
    • PTC protection
    • Penolic resin base commutator
    • Epoxy coating armature
    • Lightweight and long life
  • We assure our products in high quality, economical price and all-round services after sale
  • If you are into our products, please send us inquiry
  • Ratio: 1/40
  • Voltage: 24V DC
  • At no load:
    • Speed: 390.1rpm
    • Current: 0.21A
  • At 3kg.cm load:
    • Speed: 333.4rpm
    • Current: 0.95A
  • Speed: 390.1rpm
  • Current: 0.21A
  • Speed: 333.4rpm
  • Current: 0.95A
  • Technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length
  • OEM and customization are accepted
  • RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low noise design
  • Fast response (small Tm)
  • High torque at a low speed
  • PTC protection
  • Penolic resin base commutator
  • Epoxy coating armature
  • Lightweight and long life
