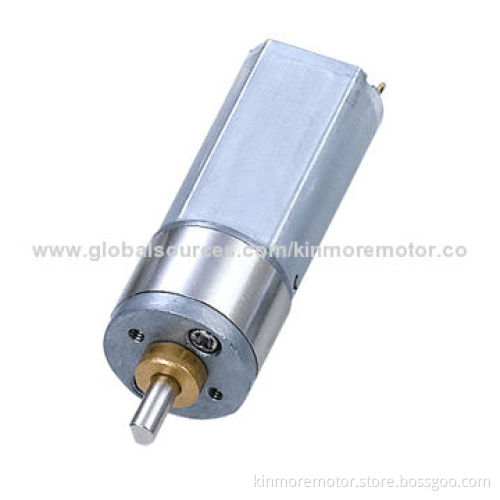

13:1 Reduction Gear Ratio KM-16A050 DC Geared Motor for Electric Locks and Actuators

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Technical performance data:

Nominal voltage: 24.0V
No load:
- Speed: 1,088rpm
- Current: 0.022A
On load:
- Torque: 0.08kg.cm
- Speed: 844rpm
- Current: 0.088A
Remarks: technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length

Packing/carton:

DC motor (Ø x W x L): 15.5 x 12 x 26.9mm

Gearbox material: die-cast zinc

Gearbox length: from 11 to 17mm varying with the reduction ratio

Gearbox diameter: 16mm

Shaft diameter: 3.0mm with customized D-shape and shaft length

Rotation: CCW/CW, reversible

Gears: spur metal gears

Lubrication: grease filled

Way of commutation: carbon brush or precious metal carbon brush

Nominal voltage: 24.0V

No load:

On load:

Remarks: technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length

Speed: 1,088rpm

Current: 0.022A

Torque: 0.08kg.cm

Speed: 844rpm

Current: 0.088A

Quantity: 240 pieces

Net weight: 7.44kg

Gross weight: 8.31kg

Dimensions: 40.5 x 28.8 x 24.5cm
