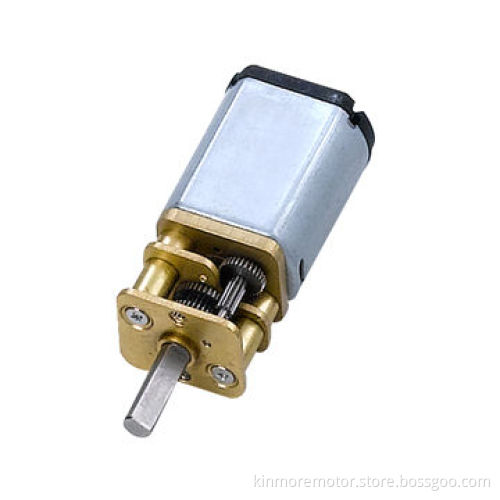

3-volt metal brush spur gear DC motor for coffee machine and robot

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Gear box material: brass
Gearbox size (W x H x L): 13 x 12 x 11mm
DC motor (D x F x L): 15.5 x 12 x 18.6mm
Shaft: Ø3mm inline carbon steel shaft with custom D shaped and length
Rotation: CCW/CW, reversible
Gears: spur metal gears
Lubrication: grease filled
Way of commutation: metal or carbon brush
Reduction ratio: 1/35

Performance:

Ratio: 1/35
Voltage: 3V DC
At no loading:
- Speed: 485rpm
- Current: 0.15A
At loading:
- Speed: 415rpm
- Current: 0.47A
- Torque: 0.082kg.cm

Remarks: technical data like voltage, speed, torque, shaft direction, shaft length, D-shaped size and length

Our products: Dia 6~52mm DC micro motor and gear motor, Auto dc motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor and more

Products size range: Diameter: 6-52mm

DC voltage range: 1.5V -42VAC rectify: 100V, 110V, 220V, 230V, 240V etc.

Speed range: 1 RPM-30,000RPM

Stall torque: 5-30kg.cm

Applications: Home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio& visual equipment and more

Inspection occurs throughout the whole process flow; unitizing hexagon CMM, Xray spectrometer, MEA motor performance testing system, tension tester, torque tester

Motor performance testing system and other geometrical testing equipment, we performa battery of inspections from tooling, material to finished products as below:
