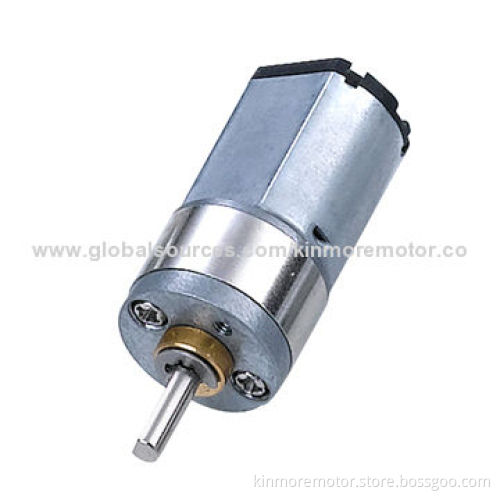

Dia 16.0mm KM-16A030 DC Reduction Motor for Actuator and Armarium, with 12V DC Rated Voltage

Get Latest Price

Payment Type:: T/T and L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T and L/C

Product Description

Specifications:

Gearbox (D x L ): 16 x 11 to 17mm (length vary with speed reduction ratio)
DC motor (D x L x F) : 15.5 x 12.0 x 18.6mm
Shaft diameter: 3.0mm with custom-made D-shape and length
Coupled with precious metal brush FF-030 motor

Technical performance data:

Rated voltage: 12V DC
No loading speed: 1,332rpm
No loading current: 0.046A (maximum 0.18A)
On load torque: 0.03g/cm
On loading speed: 1,171rpm
On loading current: 0.094A (maximum 0.6A)

Remarks: above is just one specification for your reference, your own data is warm welcomed for our engineer to evaluate

Applications:

Used for curtain lift, robotics actuation, kitchen accessories with lock, robot, actuator and armarium

Customized options:

OEM and customization are available
Compliant with ROHS Directive
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small tm)
High-torque at a low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan

We assure our products in high-quality, economical price and all round services after sale, if you are into our products, please don't hesitate to inquiry

Gearbox (D x L ): 16 x 11 to 17mm (length vary with speed reduction ratio)

DC motor (D x L x F) : 15.5 x 12.0 x 18.6mm

Shaft diameter: 3.0mm with custom-made D-shape and length

Coupled with precious metal brush FF-030 motor

Rated voltage: 12V DC

No loading speed: 1,332rpm

No loading current: 0.046A (maximum 0.18A)

On load torque: 0.03g/cm

On loading speed: 1,171rpm

On loading current: 0.094A (maximum 0.6A)

Used for curtain lift, robotics actuation, kitchen accessories with lock, robot, actuator and armarium

OEM and customization are available

Compliant with ROHS Directive

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small tm)

High-torque at a low-speed

PTC protection

Phenolic resin base commutator

Epoxy coating armature

Lightweight and long lifespan
