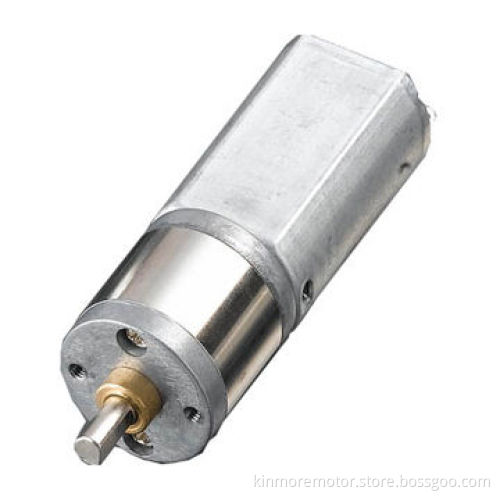

3V DC electric motor with reduction gears for pump
  • 3V DC electric motor with reduction gears for pump
3V DC electric motor with reduction gears for pump

3V DC electric motor with reduction gears for pump

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Performance of the gear motor:
  • Reduction ratio:  1/58
  • Voltage:
    • Operating range: 2.0-3.0V
    • Nominal voltage: 3.0V
  • No load:
    • Speed: 121.4rpm
    • Current: 0.22A
  • On load
    • Current: 0.75A
    • Torque: 0.6kg.vm
    • Speed: 97.6rpm
    • Direction of rotation: CW/CCW
  • Noted:  All of the data could be custom made according to your requirements
  • Dimension of the gear motor:
  • Diameter of the motor: 20.4mm
  • Length of the motor: 32.1mm
  • Diameter of the gearbox: 20mm
  • Diameter of the shaft: 7mm
  • Features of the gear motor:
  • Bi-direction
  • Metal or carbon brush DC motor
  • Spur gears
  • Zinc die cast gear case
  • Sleeve bronze bushing
  • Typical applications:
    • Vending machine
    • Business machine
    • Duplicating machine
    • Pump
  • Operating range: 2.0-3.0V
  • Nominal voltage: 3.0V
  • Speed: 121.4rpm
  • Current: 0.22A
  • Current: 0.75A
  • Torque: 0.6kg.vm
  • Speed: 97.6rpm
  • Direction of rotation: CW/CCW
  • Vending machine
  • Business machine
  • Duplicating machine
  • Pump
