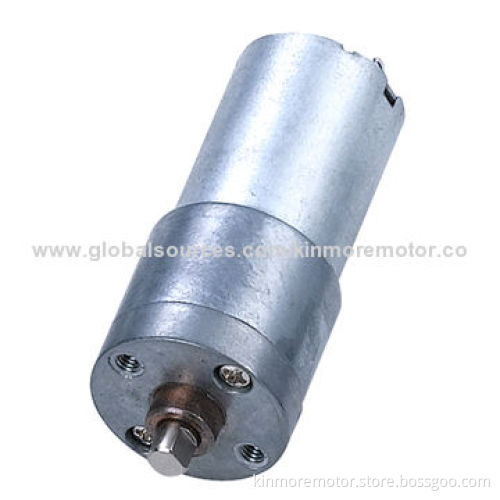

DC Geared Motor with Metal Brush for Pump

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimensions:

Iron core
Weight: 44g (approximately)
Gearbox diameter: 20mm
Shaft diameter: 4mm
Shaft position: inline
Motor dimensions: 17*22.8mm

Performance:

Reduction ratio: 1/144
Operating voltage range:1.5-3.0V
Nominal voltage: 1.5V
No load:
Current: 0.02A
Speed: 13.2rpm
On load:
Current: 0.054A
Torque: 0.2kg.cm
Speed: 10rpm
Direction of rotation: CW/CCW
Note: above is just for customers' reference, customized specifications are welcomed

Features:

Bi-direction
Metal brush DC motor
Spur gears
Zinc die-cast gear case
Sleeve bronze bushing

Typical applications:

Vending machines
Business machines
Duplicating machines
Pump

Construction:

Two-pole stator
SR ferrite permanent magnet
3, 5, 7, 8, 9 and 12 slots armature
Silicone steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commentator
Copper graphite brushes
Cu leaf brush commutation system
SECD round/flat-shaped housing
SECD end cap/PA66 and fiber end cap
Cylinder (self-aligning) sintered bush
155° (class F) copper wire

Inspection to guarantee reliable quality:

Inspection occurs throughout the whole process flow
Unitizing Hexagon CMM, X-ray spectrometer, MEA motor performance testing system, tension tester, torque tester, motor performance testing system and other geometrical testing equipment, we perform a battery of inspections from tooling, material to finished products as below:
Tooling inspection
Material lot acceptance inspection
Material life test
First article inspection
Operator self-inspection
Random inspection
100% inspection to key process and motor electric performance
Final inspection

Iron core

Weight: 44g (approximately)

Gearbox diameter: 20mm

Shaft diameter: 4mm

Shaft position: inline

Motor dimensions: 17*22.8mm

Reduction ratio: 1/144

Operating voltage range:1.5-3.0V

Nominal voltage: 1.5V

No load:

Current: 0.02A

Speed: 13.2rpm

On load:

Current: 0.054A

Torque: 0.2kg.cm

Speed: 10rpm

Direction of rotation: CW/CCW

Note: above is just for customers' reference, customized specifications are welcomed

Bi-direction

Metal brush DC motor

Spur gears

Zinc die-cast gear case

Sleeve bronze bushing

Vending machines

Business machines

Duplicating machines

Pump

Two-pole stator

SR ferrite permanent magnet

3, 5, 7, 8, 9 and 12 slots armature

Silicone steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commentator

Copper graphite brushes

Cu leaf brush commutation system

SECD round/flat-shaped housing

SECD end cap/PA66 and fiber end cap

Cylinder (self-aligning) sintered bush

155° (class F) copper wire

Inspection occurs throughout the whole process flow

Unitizing Hexagon CMM, X-ray spectrometer, MEA motor performance testing system, tension tester, torque tester, motor performance testing system and other geometrical testing equipment, we perform a battery of inspections from tooling, material to finished products as below:

Tooling inspection

Material lot acceptance inspection

Material life test

First article inspection

Operator self-inspection

Random inspection

100% inspection to key process and motor electric performance

Final inspection
