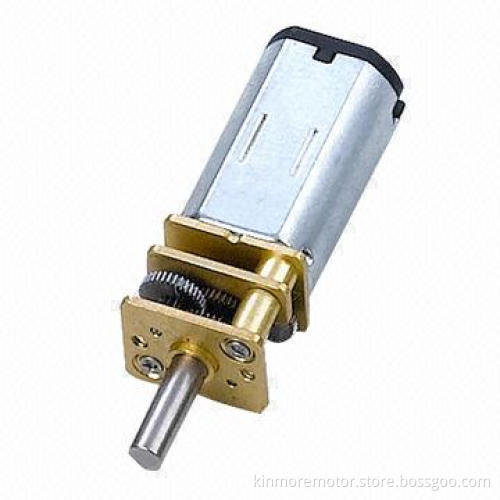

Mini geared motor, DC 3V 6V 12V 24V, used for cordless machine video camera
  • Mini geared motor, DC 3V 6V 12V 24V, used for cordless machine video camera
Mini geared motor, DC 3V 6V 12V 24V, used for cordless machine video camera

Mini geared motor, DC 3V 6V 12V 24V, used for cordless machine video camera

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Model No.: KM-12FN30
  • Low voltage direct-current gear motor
  • DC voltage range: 2.5-12V
  • No load speed: 48-100RPM
  • On load torque: 54-1500g.cm
  • Gearbox diameter: 12mm
  • The motor can be customized according to the different required performance
  • For example:
    • Model No. KM -12FN30-298-0377
    • Outline dimensions: 12 x 10 x 29mm (shaft length not included)
    • Shaft length and D-cut, can be customized
    • Exposed brass gear box
    • Gear box rear ratio: 1/20, 1/30, 1/50, 1/100, 1/115, 1/298 or others as requested after evaluation
  • Technical performance:
    • Rated voltage: 3.0V
    • No loading speed: 77rpm
    • No loading current: 0.28A
    • On loading torque: 1,000g/cm
    • On loading speed: 65rpm
    • On loading current: 0.85A
    • Stall torque: 5,000g/cm
  • Above technical performance is just one specification, all data can be custom made after evaluation, your own requirement data are welcomed
  • Lifespan: can run for 200-hour continuously in normal working operating
  • Advantages:
    • Low speed with high torque and long lifespan
    • Very compact size, easy to install with your limited product housing space
  • Typical applications:
    • Suitable for robotics, mini appliances, mini screw driver, locks, medical, dispensing equipments and mini printers
  • Model No. KM -12FN30-298-0377
  • Outline dimensions: 12 x 10 x 29mm (shaft length not included)
  • Shaft length and D-cut, can be customized
  • Exposed brass gear box
  • Gear box rear ratio: 1/20, 1/30, 1/50, 1/100, 1/115, 1/298 or others as requested after evaluation
  • Rated voltage: 3.0V
  • No loading speed: 77rpm
  • No loading current: 0.28A
  • On loading torque: 1,000g/cm
  • On loading speed: 65rpm
  • On loading current: 0.85A
  • Stall torque: 5,000g/cm
  • Low speed with high torque and long lifespan
  • Very compact size, easy to install with your limited product housing space
  • Suitable for robotics, mini appliances, mini screw driver, locks, medical, dispensing equipments and mini printers
