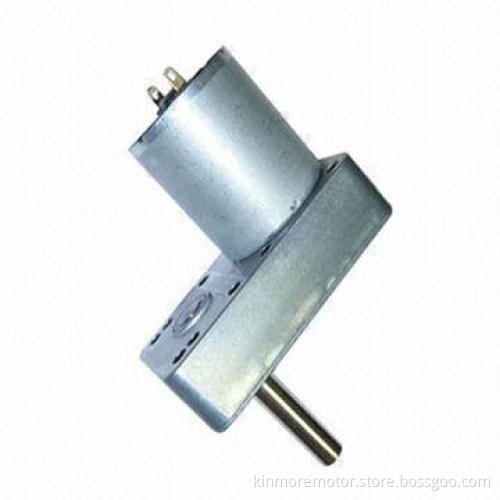

12V Geared Motor for Vending Machine and Dispenser with Parallel 8mm Shaft, 30kg/cm Torque
  • 12V Geared Motor for Vending Machine and Dispenser with Parallel 8mm Shaft, 30kg/cm Torque
12V Geared Motor for Vending Machine and Dispenser with Parallel 8mm Shaft, 30kg/cm Torque

12V Geared Motor for Vending Machine and Dispenser with Parallel 8mm Shaft, 30kg/cm Torque

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Spur metal gears
    • Way of commutation: carbon brush system
    • Shaft diameter: parallel 8mm
    • Gearbox (W x L x H): 40 x 70 x 20mm die-casting zinc
    • DC motor (D x L): 34.5 x 40mm
    • Gear ratio: 1/14.6, 1/29, 1/37, 1/189, 1/244, 1/158, 1/530,1/554, 1/609 and 1/1483
    • Nominal voltage: 12V
    • No loading speed: 20.1rpm
    • No loading current: 0.22A (maximum)
    • On loading speed: 17.1rpm
    • On loading torque: 30.0kg/cm
    • On loading current: 1A (maximum)
  • Customization options:
    • OEM and customization are available
    • With RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High-degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low-noise design
    • Fast response (small TM)
    • High-torque at a low-speed
    • PTC protection
    • Phenolic resin base commutator
    • Epoxy coating armature
    • Lightweight and long lifespan
  • Spur metal gears
  • Way of commutation: carbon brush system
  • Shaft diameter: parallel 8mm
  • Gearbox (W x L x H): 40 x 70 x 20mm die-casting zinc
  • DC motor (D x L): 34.5 x 40mm
  • Gear ratio: 1/14.6, 1/29, 1/37, 1/189, 1/244, 1/158, 1/530,1/554, 1/609 and 1/1483
  • Nominal voltage: 12V
  • No loading speed: 20.1rpm
  • No loading current: 0.22A (maximum)
  • On loading speed: 17.1rpm
  • On loading torque: 30.0kg/cm
  • On loading current: 1A (maximum)
  • OEM and customization are available
  • With RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low-noise design
  • Fast response (small TM)
  • High-torque at a low-speed
  • PTC protection
  • Phenolic resin base commutator
  • Epoxy coating armature
  • Lightweight and long lifespan
