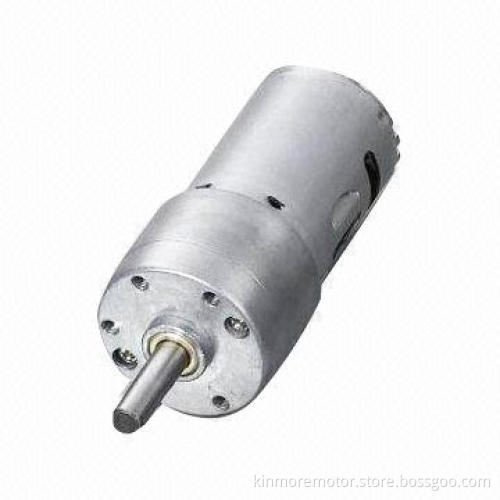

12V DC Gear Motor for Vending Machines/Robots/Car Readers, with Ø6mm Inline Shaft, 32mm Gearbox
  • 12V DC Gear Motor for Vending Machines/Robots/Car Readers, with Ø6mm Inline Shaft, 32mm Gearbox
12V DC Gear Motor for Vending Machines/Robots/Car Readers, with Ø6mm Inline Shaft, 32mm Gearbox

12V DC Gear Motor for Vending Machines/Robots/Car Readers, with Ø6mm Inline Shaft, 32mm Gearbox

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Gearbox: Ø32mm
    • Material: die-casting zinc
    • Shaft: Ø6mm inline carbon steel shaft with customizedshapes and lengths
    • DC motor (Ø x L): 27.7 x 37.8mm
    • Rotation: CCW/CW, reversible
    • Gears: spur metal gears
    • Lubrication: grease filled
    • Way of commutation: carbon brush
    • Reduction ratios: 1/15, 1/17.3, 1/40, 1/46, 1/51.8, 1/105,1/136, 1/155, 1/278, 1/316, 1/409, 1/466, 1/732, 1/1,228 and1/1.397.3
    • Suitable for vending machines, robots and car readers
  • Performance:
    • Ratio: 1/155.3
    • Voltage: 12V DC
    • At no load:
      • Speed: 122.6rpm
      • Current: 0.51A (maximum)
    • At 15kg.cm load:
      • Speed: 97.4rpm
      • Current: 2.35A (maximum)
    • Optional: technical data like voltage, speed, torque, shaftdirection, shaft length, D-shaped size and length
  • Customization options:
    • OEM and customization are available
    • Compliant with RoHS Directive
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low noise design
    • Fast response (small Tm)
    • High torque at a low speed
    • PTC protection
    • Penolic resin base commutator
    • Epoxy coating armature
    • Lightweight and long lifespan
  • Gearbox: Ø32mm
  • Material: die-casting zinc
  • Shaft: Ø6mm inline carbon steel shaft with customizedshapes and lengths
  • DC motor (Ø x L): 27.7 x 37.8mm
  • Rotation: CCW/CW, reversible
  • Gears: spur metal gears
  • Lubrication: grease filled
  • Way of commutation: carbon brush
  • Reduction ratios: 1/15, 1/17.3, 1/40, 1/46, 1/51.8, 1/105,1/136, 1/155, 1/278, 1/316, 1/409, 1/466, 1/732, 1/1,228 and1/1.397.3
  • Suitable for vending machines, robots and car readers
  • Ratio: 1/155.3
  • Voltage: 12V DC
  • At no load:
    • Speed: 122.6rpm
    • Current: 0.51A (maximum)
  • At 15kg.cm load:
    • Speed: 97.4rpm
    • Current: 2.35A (maximum)
  • Optional: technical data like voltage, speed, torque, shaftdirection, shaft length, D-shaped size and length
  • Speed: 122.6rpm
  • Current: 0.51A (maximum)
  • Speed: 97.4rpm
  • Current: 2.35A (maximum)
  • OEM and customization are available
  • Compliant with RoHS Directive
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low noise design
  • Fast response (small Tm)
  • High torque at a low speed
  • PTC protection
  • Penolic resin base commutator
  • Epoxy coating armature
  • Lightweight and long lifespan
