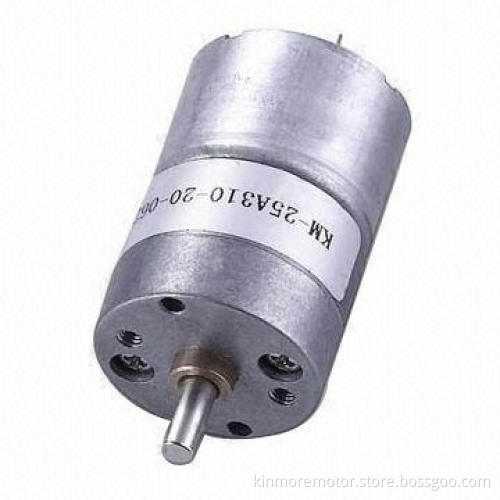

1.5V Low-speed DC Motor with Gearbox for Vending/Auto-door/RC Model/Shutter

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Gearbox diameter: 25mm (material: die-casting zinc)

Shaft (diameter): 4mm inline carbon steel shaft with custom D-shaped and length

DC motor (D x L): 24.4 x 18mm

Rotation: CCW/CW, reversible

Gears: spur metal or plastic gears

Lubrication: grease filled

Way of commutation: carbon or metal brushes

Reduction ratio: 1/11, 1/15, 1/20, 1/26, 1/34, 1/45, 1/51, 1/57, 1/61, 1/75, 1/85, 1/98, 1/112, 1/125, 1/165, 1/217, 1/274, 1/362, 1/478, 1/545, 1/796, 1/603 and 1/1,051
