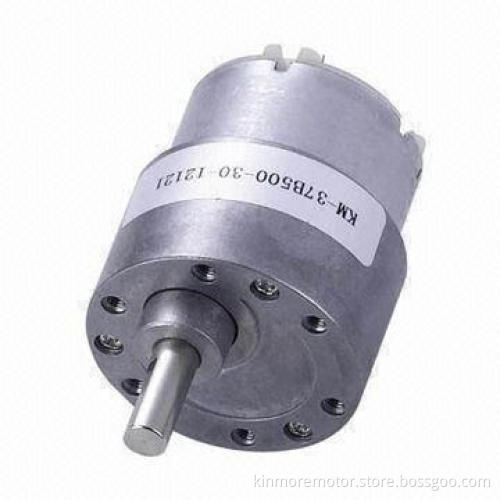

5V Geared Motor for Dispensers/Sprayers/Paper Towers, with 37mm Diameter/Offset 6mm Shaft

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Gearbox diameter: 37mm
Length varies with reduction ratio: between 17.8 to 29.2mm
DC motor (D x H): 32 x 19.5mm
Shaft diameter: offset 6mm with customized length, D-shapedsize and length
Gear ratios:
- 1/6.5, 1/10, 1/15, 1/19.5, 1/20, 1/24, 1/28, 1/30, 1/35, 1/40,1/50, 1/56, 1/58.5, 1/60, 1/70, 1/83, 1/90, 1/106, 1/150, 1/180,1/210, 1/270, 1/168, 1/280, 1/360, 1/432, 1/450, 1/540, 1/630,1/810 and 1/1084

Technical performance data:

Nominal voltage: 5V
No load speed: 25rpm
No load current: 0.16A (maximum)
On load speed: 22rpm
On load torque: 1.2kg/cm
On load current: 210mA

Customization options:

OEM and customization are available
ROHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low noise design
Fast response (small Tm)
High torque at a low speed
PTC protection
Penolic resin base commutator
Epoxy coating armature
Light weight and long life

Gearbox diameter: 37mm

Length varies with reduction ratio: between 17.8 to 29.2mm

DC motor (D x H): 32 x 19.5mm

Shaft diameter: offset 6mm with customized length, D-shapedsize and length

Gear ratios:

1/6.5, 1/10, 1/15, 1/19.5, 1/20, 1/24, 1/28, 1/30, 1/35, 1/40,1/50, 1/56, 1/58.5, 1/60, 1/70, 1/83, 1/90, 1/106, 1/150, 1/180,1/210, 1/270, 1/168, 1/280, 1/360, 1/432, 1/450, 1/540, 1/630,1/810 and 1/1084

1/6.5, 1/10, 1/15, 1/19.5, 1/20, 1/24, 1/28, 1/30, 1/35, 1/40,1/50, 1/56, 1/58.5, 1/60, 1/70, 1/83, 1/90, 1/106, 1/150, 1/180,1/210, 1/270, 1/168, 1/280, 1/360, 1/432, 1/450, 1/540, 1/630,1/810 and 1/1084

Nominal voltage: 5V

No load speed: 25rpm

No load current: 0.16A (maximum)

On load speed: 22rpm

On load torque: 1.2kg/cm

On load current: 210mA

OEM and customization are available

ROHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High degree of protection
