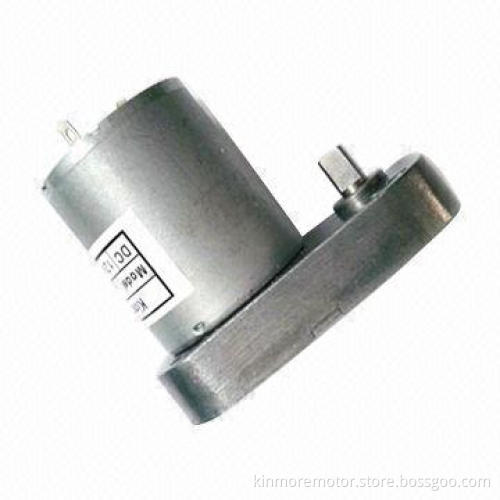

12V DC Geared Motor with 38 x 64.4 x 12mm Gearbox and Ø6mm Parallel Shaft for Vending Machine

12V DC Geared Motor with 38 x 64.4 x 12mm Gearbox and Ø6mm Parallel Shaft for Vending Machine

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Gearbox: 38 x 64.4 x 12mm (material: die-casting zinc)
Shaft: 6mm parallel carbon steel shaft with custom direction(left or right or both), D-shaped and length
DC motor: Ø34.5 x 40mm
Rotation: CCW/CW, reversible
Gears: spur metal or plastic gears
Lubrication: grease filled
Way of commutation: carbon brush
Reduction ratio: 1/20.6, 1/36, 1/40, 1/60, 1/67, 1/78, 1/96,1/155.5, 1/178, 1/225 and 1/446
Ratio: 1/105
Voltage: 12V DC
At no loading:
- Speed: 110.7rpm
- Current: 0.6A (maximum)
At 8kg/cm loading:
- Speed: 93rpm
- Current: 1.95A (maximum)

Optional functions: technical data like voltage, speed, torque,shaft direction, shaft length, D-shaped size and length

Customization options:

OEM orders and customized designs are accepted

Compliant with the RoHS Directive

Ball bearing in output side

EMI suppression

Low-cogging design

High degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low noise design

Fast response (small Tm)

High torque at low speed

PTC protection

Penolic resin base commutator

Epoxy coating armature

Lightweight and long life

Gearbox: 38 x 64.4 x 12mm (material: die-casting zinc)

Shaft: 6mm parallel carbon steel shaft with custom direction(left or right or both), D-shaped and length

DC motor: Ø34.5 x 40mm

Rotation: CCW/CW, reversible

Gears: spur metal or plastic gears

Lubrication: grease filled

Way of commutation: carbon brush

Reduction ratio: 1/20.6, 1/36, 1/40, 1/60, 1/67, 1/78, 1/96,1/155.5, 1/178, 1/225 and 1/446

Ratio: 1/105

Voltage: 12V DC

At no loading:

Speed: 110.7rpm
Current: 0.6A (maximum)

At 8kg/cm loading:

Speed: 93rpm
Current: 1.95A (maximum)

Speed: 110.7rpm

Current: 0.6A (maximum)

Speed: 93rpm

Current: 1.95A (maximum)

Features:

Main products: DC micro/gear motor, auto DC motor, electricmotor, brush DC motor, spur gear motor, micro motor, vibrationmotor and more

Products size range:

Diameter: 6 to 52mm

DC voltage range: 1.5 to 42V

AC rectify: 100V, 110V, 220V, 230V, 240V and more

Speed range: 1 to 30,000rpm

Stall torque: 5 to 30kg.cm

Diameter: 6 to 52mm

Applications: home appliances, power tools, toys/models,precision instrument, office equipment, personal care product,automotive, audio/visual equipment
