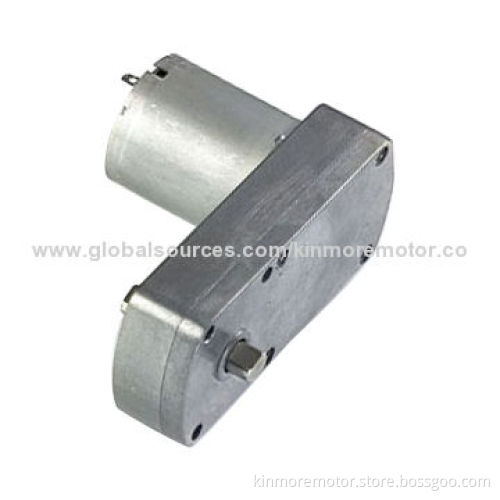

DC Geared Motor with 2-3kg.cm Load Torque, Used in Vending Machine, Air Pillow Machine, Power Tool

DC Geared Motor with 2-3kg.cm Load Torque, Used in Vending Machine, Air Pillow Machine, Power Tool

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Dimensions:

Gearbox (L x W x H): 32 x 42 x 20mm
Shaft diameter: 8mm
DC motor (D x L): 34.5 x 40mm

Technical data:

Voltage: 12V or as requested
Reduction ratio: 1/37, 1/189, 1/244, 1/554
No load speed: 5.4 to 81rpm
On load speed: 4.2 to 64rpm
On load current: 320, 350, 370 and 380mA
On load torque: 2.0 to 3.0kg.cm

Features:

Bi-direction
Carbon brush
Zinc die cast gear case
Sleeve bronze bushing
Typical applications:
Vending machine
Model
Power tool
Air pillow machine

Our service:

OEM and customization are available
ROHS Directive-compliant
Ball Bearing in output side
EMI suppression
Low-cogging design
High degrees of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at a low-speed
PTC protection
Phenolic resin base commentator
Epoxy coating armature
Lightweight and long lifespan

Gearbox (L x W x H): 32 x 42 x 20mm

Shaft diameter: 8mm

DC motor (D x L): 34.5 x 40mm

Voltage: 12V or as requested

Reduction ratio: 1/37, 1/189, 1/244, 1/554

No load speed: 5.4 to 81rpm

On load speed: 4.2 to 64rpm

On load current: 320, 350, 370 and 380mA

On load torque: 2.0 to 3.0kg.cm

Bi-direction

Carbon brush

Zinc die cast gear case

Sleeve bronze bushing

Typical applications:

Vending machine

Model

Power tool

Air pillow machine

OEM and customization are available

ROHS Directive-compliant

Ball Bearing in output side

EMI suppression

Low-cogging design

High degrees of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small Tm)

High-torque at a low-speed

PTC protection

Phenolic resin base commentator

Epoxy coating armature

Lightweight and long lifespan
