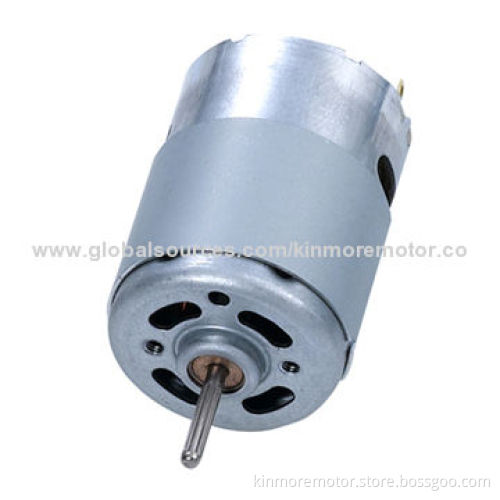

Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
  • Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
  • Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
  • Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
  • Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
  • Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
  • Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
  • Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
  • Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage
Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage

Vacuum Cleaner Motor with 3 or 5 Slots Armature, 4.8V Nominal Voltage

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Dimensions:
    • Diameter of housing: 27.7mm
    • Length of housing: 37.8mm
    • Diameter of shaft: 2.3mm
    • Length of shaft: could be customized
  • Specifications:
    • Nominal voltage: 4.8V
    • No loading:
      • Speed: 7,800rpm
      • Current: 0.32A
    • At maximum efficiency:
      • Speed: 6,701rpm
      • Current: 1.95A
      • Torque: 101gcm
      • Output: 6.98W
      • Stall torque: 720gcm
      • Stall current: 11.9A
      • Direction of rotation: CW/CCW
  • Features:
    • Metal end cap
    • Sintered Broze Be
    • Leaf brush system
    • 3/5 slots armature
  • Our products are DC motor, gear motor and vibration motor, the parameters can be customized according to your requirements
  • Diameter of housing: 27.7mm
  • Length of housing: 37.8mm
  • Diameter of shaft: 2.3mm
  • Length of shaft: could be customized
  • Nominal voltage: 4.8V
  • No loading:
    • Speed: 7,800rpm
    • Current: 0.32A
  • At maximum efficiency:
    • Speed: 6,701rpm
    • Current: 1.95A
    • Torque: 101gcm
    • Output: 6.98W
    • Stall torque: 720gcm
    • Stall current: 11.9A
    • Direction of rotation: CW/CCW
  • Speed: 7,800rpm
  • Current: 0.32A
  • Speed: 6,701rpm
  • Current: 1.95A
  • Torque: 101gcm
  • Output: 6.98W
  • Stall torque: 720gcm
  • Stall current: 11.9A
  • Direction of rotation: CW/CCW
  • Metal end cap
  • Sintered Broze Be
  • Leaf brush system
  • 3/5 slots armature
