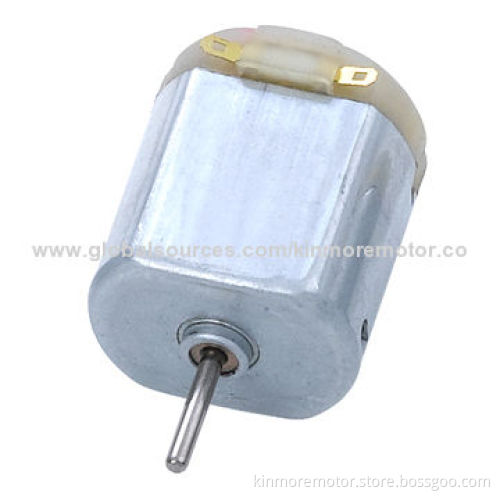

12V DC fan motor with 10,500rpm for door lock actuator

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimension:

Diameter of housing: 24mm
Length of housing: 27mm
Width of housing: 18.3mm
Diameter of shaft: 2.0mm
Length of shaft: could be custom made

Specification:

Nominal voltage: 12V
No load:
- Speed: 10,500rpm
- Current: 0.06A
At maximum efficiency:
- Speed: 8894rpm
- Current: 0.33A
- Torque: 27.5g.cm
- Output: 2.52W
- Stall torque: 181g.cm
- Stall current: 1.83A
- Direction of rotation: CW/CCW

Features:

Plastic end cap
Oil-impregnated bearing
Leaf brush system
Carbon steel shaft

Inspection to guarantee reliable quality:

Tooling inspection
Material lot acceptance inspection
Material lifespan test
First article inspection
Operator self-inspection
Random inspection
100% inspection to key process and motor electric performance
Final inspection

Diameter of housing: 24mm

Length of housing: 27mm

Width of housing: 18.3mm

Diameter of shaft: 2.0mm

Length of shaft: could be custom made

Nominal voltage: 12V

No load:

Speed: 10,500rpm
Current: 0.06A

At maximum efficiency:

Speed: 8894rpm
Current: 0.33A
Torque: 27.5g.cm
Output: 2.52W
Stall torque: 181g.cm
Stall current: 1.83A
Direction of rotation: CW/CCW

Speed: 10,500rpm

Current: 0.06A

Speed: 8894rpm

Current: 0.33A

Torque: 27.5g.cm

Output: 2.52W

Stall torque: 181g.cm

Stall current: 1.83A

Direction of rotation: CW/CCW

Plastic end cap

Oil-impregnated bearing

Leaf brush system

Carbon steel shaft

Tooling inspection

Material lot acceptance inspection

Material lifespan test

First article inspection

Operator self-inspection

Random inspection

100% inspection to key process and motor electric performance

Final inspection
