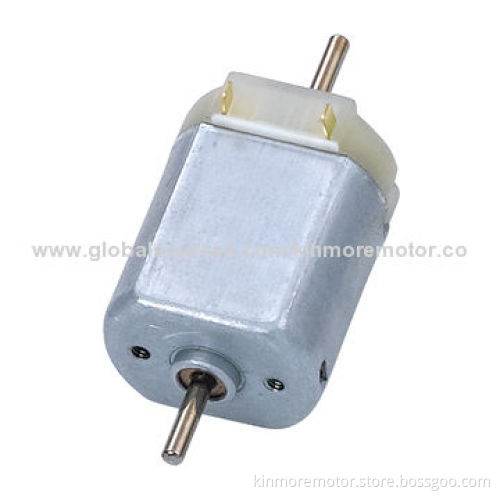

Micro DC motor for RC model with double shaft

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Features:

Plastic end cap
Oil-impregnated bearing
Leaf brush system
Carbon steel shaft

Dimensions:

Diameter: 20.2mm
Length: 25mm
Shaft diameter: 2.0mm
Shaft length: could be custom made according to your demand

Performance:

Rated voltage: 12V DC
No load:
- Speed: 13,600rpm
- Current: 0.12A
At max. efficiency:
- Speed: 10,431rpm
- Torque: 23.3g.cm
- Current: 0.4A
At stall:
- Torque: 100g.cm
- Current: 1.3A
Direction of rotation: CW/CCW

Typical Application:

Rear view mirror
Headlamp adjuster
Mirror adjuster
RC model/toy

Constructions of motor:

2-pole stator
Sr ferrite permanent magnet
3, 5, 7, 8, 9, 12 slots armature
Silicone-steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commutator
Copper-graphite brushes
Be-Cu leaf-brush commutating system
SECD round/flat shape housing
SECD end cap/PA66 and fiber end cap

Plastic end cap

Oil-impregnated bearing

Leaf brush system

Carbon steel shaft

Diameter: 20.2mm

Length: 25mm

Shaft diameter: 2.0mm

Shaft length: could be custom made according to your demand

Rated voltage: 12V DC

No load:

Speed: 13,600rpm
Current: 0.12A

At max. efficiency:

Speed: 10,431rpm
Torque: 23.3g.cm
Current: 0.4A

At stall:

Torque: 100g.cm
Current: 1.3A

Direction of rotation: CW/CCW

Speed: 13,600rpm

Current: 0.12A

Speed: 10,431rpm

Torque: 23.3g.cm

Current: 0.4A

Torque: 100g.cm

Current: 1.3A

Rear view mirror

Headlamp adjuster

Mirror adjuster

RC model/toy

2-pole stator

Sr ferrite permanent magnet

3, 5, 7, 8, 9, 12 slots armature

Silicone-steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commutator

Copper-graphite brushes

Be-Cu leaf-brush commutating system

SECD round/flat shape housing

SECD end cap/PA66 and fiber end cap
