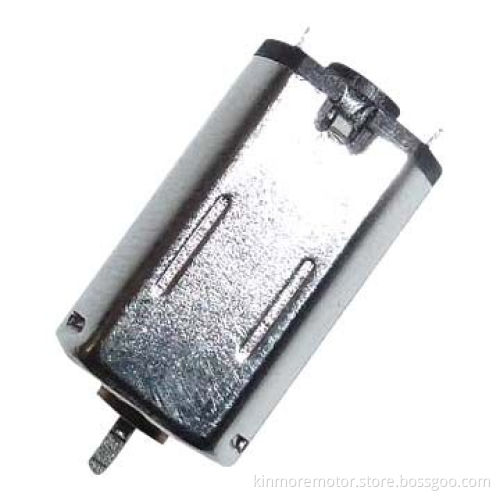

Micro motor with 3 volt DC for automatic door lock

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Features:

NdFeB magnet
Precious metal brush
Stainless steel shaft
Oil-impregnated bearing

Technical performance data:

Rated voltage: 3.0V DC
- At no load:
- Speed: 8,700rpm
- Current: 0.04A
At maximum efficiency range:
- Speed: 7,200rpm
- Current: 0.085A
- Torque: 1.0g.cm
- Output power: 0.07W
At stall:
- Torque: 4.5g.cm
- Current: 0.28A
Customized data requirements are welcome
Suitable for our engineers evaluation

Specifications:

Motor housing (D x flat x L): 10 x 8 x 16mm (material: SECD)
Shaft (diameter): 1.0mm carbon steel (nickel coating)
Way of commutation: metal brush
Structure: 2-pole stater and 3-slot armature
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Options: extended shaft on the end cap side, EMI/EMC suppression

Typical applications:

Blood pressure pumps
Camcorder
Electric shaver
Toy

About our company:

Shenzhen Kinmore Motor Co. Ltd is a DC motor & gear motor manufacturer established in 1998
We own 2 factories with 17,300 square meter area
Our main products are DC motor, gear motor and vibration motor, which widely applied to automobile, home appliances, power tools, personal care products, automation equipment and toys and more
Products size range: Diameter: 6-52mm
DC voltage range: 1.5V -42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1-30,000RPM
Stall torque: 5g.cm-30kg.cm
Applications: Home appliance, power tools, toys & model, precision instrument, office, equipment, personal care producs, automotive, audio & visual equipment and more
We assure our products in high quality, economical price and all-round services after sale

NdFeB magnet

Precious metal brush

Stainless steel shaft

Oil-impregnated bearing

Rated voltage: 3.0V DC

At no load:
Speed: 8,700rpm
Current: 0.04A

At maximum efficiency range:

Speed: 7,200rpm
Current: 0.085A
Torque: 1.0g.cm
Output power: 0.07W

At stall:

Torque: 4.5g.cm
Current: 0.28A

Customized data requirements are welcome

Suitable for our engineers evaluation

At no load:

Speed: 8,700rpm

Current: 0.04A

Speed: 7,200rpm

Current: 0.085A

Torque: 1.0g.cm

Output power: 0.07W

Torque: 4.5g.cm

Current: 0.28A

Motor housing (D x flat x L): 10 x 8 x 16mm (material: SECD)

Shaft (diameter): 1.0mm carbon steel (nickel coating)

Way of commutation: metal brush

Structure: 2-pole stater and 3-slot armature

Magnet type: Nd-Fe-B

Rotation: CW/CCW and reversible

Options: extended shaft on the end cap side, EMI/EMC suppression

Blood pressure pumps

Camcorder

Electric shaver

Toy

Shenzhen Kinmore Motor Co. Ltd is a DC motor & gear motor manufacturer established in 1998

We own 2 factories with 17,300 square meter area

Our main products are DC motor, gear motor and vibration motor, which widely applied to automobile, home appliances, power tools, personal care products, automation equipment and toys and more

Products size range: Diameter: 6-52mm

DC voltage range: 1.5V -42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1-30,000RPM

Stall torque: 5g.cm-30kg.cm

Applications: Home appliance, power tools, toys & model, precision instrument, office, equipment, personal care producs, automotive, audio & visual equipment and more

We assure our products in high quality, economical price and all-round services after sale
