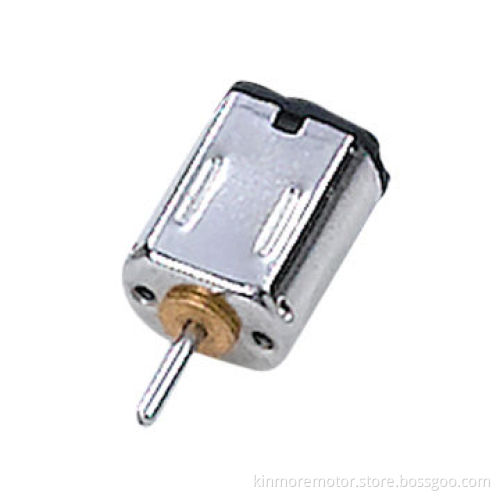

Micro DC motor for hard disk drive
  • Micro DC motor for hard disk drive
Micro DC motor for hard disk drive

Micro DC motor for hard disk drive

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Measuring conditions:
    • Rated voltage: 4.8V DC
    • Motor position: To be measured with motor horizontally held
    • Environmental temperatures: +5℃～+35℃
    • Environmental humidity range: 40%～85%RH
    • Staring voltage: ≤ 1.2V
  • Electrical characteristics (At initial stage after 30 seconds run-in):
    • At no load:
      • Speed: 42,500 ±10% rpm
      • Current: ≤ 80mA
    • At on load
      • Torque: 1.0g.cm
      • Speed: 30500 ±10% rpm
      • Current: ≤ 250mA
    • At stall:
      • Torque: ≥2.7g.cm
      • Current: ≤ 600mA
    •  Direction of rotation: CW (Clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Mechanical characteristics:
    • Dimension drawing: See<outline>
    • End play: 0.05～0.35mm
    • Operating temperature range: -10℃ ~ +60℃
  • Rated voltage: 4.8V DC
  • Motor position: To be measured with motor horizontally held
  • Environmental temperatures: +5℃～+35℃
  • Environmental humidity range: 40%～85%RH
  • Staring voltage: ≤ 1.2V
  • At no load:
    • Speed: 42,500 ±10% rpm
    • Current: ≤ 80mA
  • At on load
    • Torque: 1.0g.cm
    • Speed: 30500 ±10% rpm
    • Current: ≤ 250mA
  • At stall:
    • Torque: ≥2.7g.cm
    • Current: ≤ 600mA
  •  Direction of rotation: CW (Clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Speed: 42,500 ±10% rpm
  • Current: ≤ 80mA
  • Torque: 1.0g.cm
  • Speed: 30500 ±10% rpm
  • Current: ≤ 250mA
  • Torque: ≥2.7g.cm
  • Current: ≤ 600mA
  • Dimension drawing: See<outline>
  • End play: 0.05～0.35mm
  • Operating temperature range: -10℃ ~ +60℃
