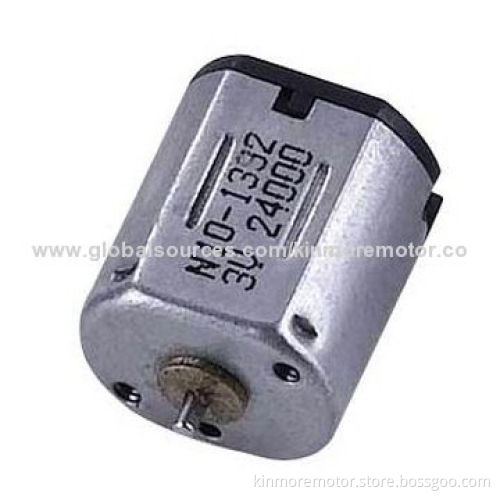

3V DC Micro Motor for Camera, Electric Shavers and Toys
  • 3V DC Micro Motor for Camera, Electric Shavers and Toys
3V DC Micro Motor for Camera, Electric Shavers and Toys

3V DC Micro Motor for Camera, Electric Shavers and Toys

Get Latest Price
Payment Type:
T/T, L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C at Sight
Product Description
Product Description
  • Motor housing (D x F x L): 12 x 10 x 13mm
  • Material: SECD
  • Shaft (diameter): 1.0mm carbon steel (nickel coating)
  • Way of commutation: metal brush
  • Structure: 2-pole stator and 3-slot armature
  • Magnet type: Nd-Fe-B
  • Rotation: CW/CCW and reversible
  • Options: extended shaft on the end cap side, EMI/EMC suppression
  • Rated voltage: 3-4.5V DC
  • At no load:
  • Speed: 21,600rpm
  • Current: 0.06A
  • Efficiency (maximum):
    • Speed: 18,500rpm
    • Current: 0.2A
    • Torque: 2.5g.cm
  • At stall:
    • Current: 0.8A (maximum)
    • Torque: 12g/cm
    • Customized data requirements are welcome for our engineer's evaluation
    • Suitable for electric shavers and toys
  • Constructions of motor:
    • 2-pole stator
    • Sr ferrite permanent magnet
    • 3, 5, 7, 8, 9, 12 slots armature
    • Silicon-steel lamination with epoxy coating
    • High-carbon steel shaft
    • Cu-Ag alloys commentator
    • Copper-graphite brushes
    • Be-Cu leaf-brush commutating system
    • SECD round/flat shape housing
    • SECD end cap/PA66 + fiber end cap
    • Cylinder (self-aligning) sintered bush
    • 155 degrees (class F) copper wire
  • About us:
    • Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
    • Product size range: 6 - 52mm, diameter
    • DC voltage range: 1.5 - 42V
    • AC rectify: 100, 110, 220, 230, 240V and more
    • Speed range: 1 - 30,000RPM
    • Stall torque: 5-30kg.cm
  • Applications:
    • Home appliance, power tools, toys, model, precision instrument, office equipment, personal care product, automotive, audio, visual equipment and more
  • Speed: 18,500rpm
  • Current: 0.2A
  • Torque: 2.5g.cm
  • Current: 0.8A (maximum)
  • Torque: 12g/cm
  • Customized data requirements are welcome for our engineer's evaluation
  • Suitable for electric shavers and toys
  • 2-pole stator
  • Sr ferrite permanent magnet
  • 3, 5, 7, 8, 9, 12 slots armature
  • Silicon-steel lamination with epoxy coating
  • High-carbon steel shaft
  • Cu-Ag alloys commentator
  • Copper-graphite brushes
  • Be-Cu leaf-brush commutating system
  • SECD round/flat shape housing
  • SECD end cap/PA66 + fiber end cap
  • Cylinder (self-aligning) sintered bush
  • 155 degrees (class F) copper wire
  • Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
  • Product size range: 6 - 52mm, diameter
  • DC voltage range: 1.5 - 42V
  • AC rectify: 100, 110, 220, 230, 240V and more
  • Speed range: 1 - 30,000RPM
  • Stall torque: 5-30kg.cm
  • Home appliance, power tools, toys, model, precision instrument, office equipment, personal care product, automotive, audio, visual equipment and more
