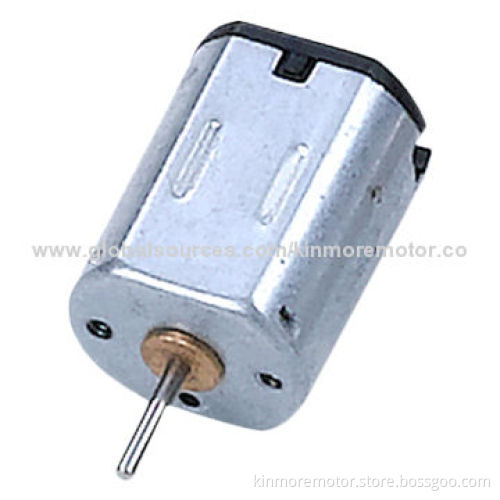

3V DC Micro Motor for Toys with 11,800rpm Speed, Stainless Steel Shaft
- Payment Type:
- T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T, L/C, Western Union, Cash, PayPal or MoneyGram |
|---|
- Dimensions of the motor (D x L x H): 8*14.5*6mm
- Performance of the motor:
- Voltage:
- Operating range: 2.0-3.5V
- Nominal voltage: 3V
- No loading:
- Speed: 11,800rpm
- Current: 0.04A
- At maximum efficiency:
- Speed: 5,800rpm
- Current: 0.1A
- Torque: 0.147mN.m or 1.5g.cm
- Output power: 0.07W
- Stall torque: 0.27mN.m or 2.8g.cm
- Stall current: 0.16A
- NdFeB magnet
- Precious metal brush
- Stainless steel shaft
- Oil-impregnated bearing
- Notebook PCs
- Optical disk drive
- Epilators
- Operating range: 2.0-3.5V
- Nominal voltage: 3V
- Speed: 11,800rpm
- Current: 0.04A
- Speed: 5,800rpm
- Current: 0.1A
