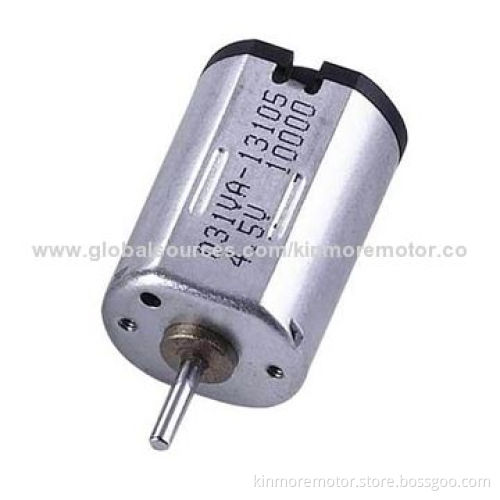

3V DC Micro Motor with Precious Metal Brush for Toys, Electric Locks, Cameras, Blood Pressure Pumps

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specifications:

Motor housing (D x F x L): 14 x 12 x 20mm (material: SECD)
Shaft (diameter): 1.5mm carbon steel (nickel coating)
Way of commutation: metal brush
Structure: 2-pole stator and 3-slot armature
Rotation: CW/CCW and reversible
NdFeB magnet
Options: EMI/EMC suppression, vibrator
Output shaft length can be customized
Oil-impregnated bearing
Stainless steel shaft

Technical performance data:

Rated voltage: 3V DC
At no loading:
- Speed: 4,000rpm
- Current: 0.025A
At 3g.cm loading:
- Speed: 2,700rpm
- Current: 0.08A (maximum)
At stall:
- Current: 0.21A (maximum)
- Torque: 7.5g.cm (minimum)
Customized data requirements are welcomed for our engineer's evaluation
About us:
- Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
- Size range (D): 6 - 52mm
- DC voltage range: 1.5 - 42V
- AC rectify: 100, 110, 220, 230, 240V and more
- Speed range: 1 - 30,000rpm
- Stall torque: 5 - 30kg.cm

Applications:

Home appliances, power tools, toys and model, precision instruments, office equipment, personal care products, automotive, audio and visual equipment and more
Suitable for door lock and blood pressure pumps

Our service:

OEM and customization orders are available
With RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degrees of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small tm)
High-torque at a low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan
