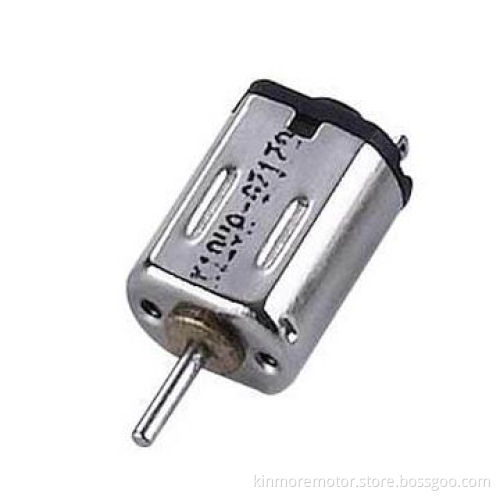

Speed 16300rpm 3V mini DC motor for PC optical disk drive

Speed 16300rpm 3V mini DC motor for PC optical disk drive

Get Latest Price

Payment Type:: TT, LC at sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, LC at sight

Product Description

Specifications:

Motor housing (D x flat x L): 8 x 6 x 10mm (material: SECD)
Shaft (diameter): 1.0mm carbon steel (nickel coating)
Way of commutation: metal brush
Structure: 2-pole stator and 3-slot armature
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Options: EMI/EMC suppression, vibrator

Technical performance data:

Measuring conditions:
Environmental humidity range: 40 to 85%RH
Environmental temperatures: 5 to 35℃
Motor position: to be measured with motor being horizontally held

Electrical characteristics:

At no load:
- Speed: 23,000 ±10% rpm
- Current: 40mA
At on load:
- Torque: 0.5g.cm
- Speed: 16,300 ±10% rpm
- Current: 90mA
At stall:
- Torque: 1.7g.cm
- Current: 200mA
Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)

Mechanical characteristics:

Dimension drawing: see drawing
End plays: 0.05 to 0.35mm
Operating temperatures: -10 to 60℃
Customized data requirements are welcome for our engineer's evaluation
Applications: suitable for small pumps, cameras and toys

About us:

Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
Product size range: 6 - 52mm, diameter
DC voltage range: 1.5 - 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 - 30,000RPM
Stall torque: 5g.cm - 30kg.cm
Applications: home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and more

Motor housing (D x flat x L): 8 x 6 x 10mm (material: SECD)

Shaft (diameter): 1.0mm carbon steel (nickel coating)

Way of commutation: metal brush

Structure: 2-pole stator and 3-slot armature

Magnet type: Nd-Fe-B

Rotation: CW/CCW and reversible

Options: EMI/EMC suppression, vibrator

Measuring conditions:

Environmental humidity range: 40 to 85%RH

Environmental temperatures: 5 to 35℃

Motor position: to be measured with motor being horizontally held

At no load:

Speed: 23,000 ±10% rpm
Current: 40mA

At on load:

Torque: 0.5g.cm
Speed: 16,300 ±10% rpm
Current: 90mA

At stall:

Torque: 1.7g.cm
Current: 200mA

Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)

Speed: 23,000 ±10% rpm

Current: 40mA

Torque: 0.5g.cm

Speed: 16,300 ±10% rpm

Current: 90mA

Torque: 1.7g.cm

Current: 200mA

Dimension drawing: see drawing

End plays: 0.05 to 0.35mm

Operating temperatures: -10 to 60℃

Customized data requirements are welcome for our engineer's evaluation

Applications: suitable for small pumps, cameras and toys

Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors

Product size range: 6 - 52mm, diameter

DC voltage range: 1.5 - 42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1 - 30,000RPM

Stall torque: 5g.cm - 30kg.cm

Applications: home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and more
