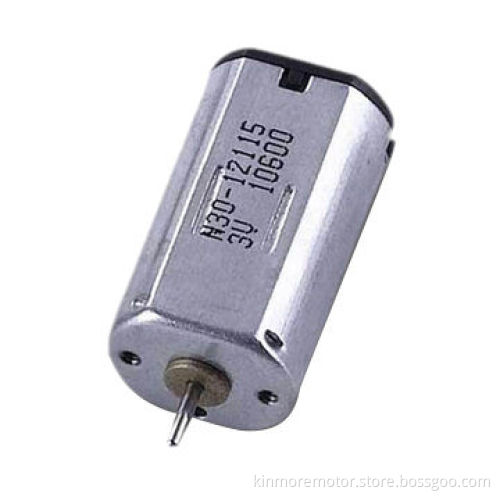

Micro Motor DC with High-speed for Hair Removers/RC Toys

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Motor housing size: 12 x 10 x 20mm
Material: SECD
Shaft diameter: 1.0mm
Way of commutation: metal brush
Rotation: CW

Measuring conditions:

Rated voltage: 4.6V DC
Motor position: to be measured with motor horizontally held
Environmental temperatures: -5 to 35
Environmental humidity range: 40 to 85% RH
Starting voltage: d1.8V
Electrical characteristics (at initial stage after 30 seconds run-in):
At no load:
- Speed: 5,300rpm ±12%
- Current: 10mA
At max efficiency:
- Torque: 1.8g.cm
- Speed: 4,100rpm ±10%
- Current: 30mA
At stall:
- Torque: 8g.cm
- Current: 110mA
Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
Mechanical characteristics:

Dimensions drawing:

End play range: 0.5 to 0.35mm
Operating temperatures: -10 to 60
Customized data requirements are welcome
Suitable for electric shavers, RC toys, audio and visual equipment
Customized shaft length are welcome

About us:

Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
Product size range: 6 - 52mm, diameter
DC voltage range: 1.5 - 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 - 30,000RPM
Stall torque: 5g.cm - 30kg.cm
Applications: home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and so on

Motor housing size: 12 x 10 x 20mm

Material: SECD

Shaft diameter: 1.0mm

Way of commutation: metal brush

Rotation: CW

Rated voltage: 4.6V DC

Motor position: to be measured with motor horizontally held

Environmental temperatures: -5 to 35

Environmental humidity range: 40 to 85% RH

Starting voltage: d1.8V

Electrical characteristics (at initial stage after 30 seconds run-in):

At no load:

Speed: 5,300rpm ±12%
Current: 10mA

At max efficiency:

Torque: 1.8g.cm
Speed: 4,100rpm ±10%
Current: 30mA

At stall:

Torque: 8g.cm
Current: 110mA

Direction of rotation: CW (clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)

Mechanical characteristics:

Speed: 5,300rpm ±12%

Current: 10mA

Torque: 1.8g.cm

Speed: 4,100rpm ±10%

Current: 30mA

Torque: 8g.cm

Current: 110mA

End play range: 0.5 to 0.35mm

Operating temperatures: -10 to 60

Customized data requirements are welcome

Suitable for electric shavers, RC toys, audio and visual equipment

Customized shaft length are welcome

Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors

Product size range: 6 - 52mm, diameter

DC voltage range: 1.5 - 42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1 - 30,000RPM

Stall torque: 5g.cm - 30kg.cm

Applications: home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and so on
