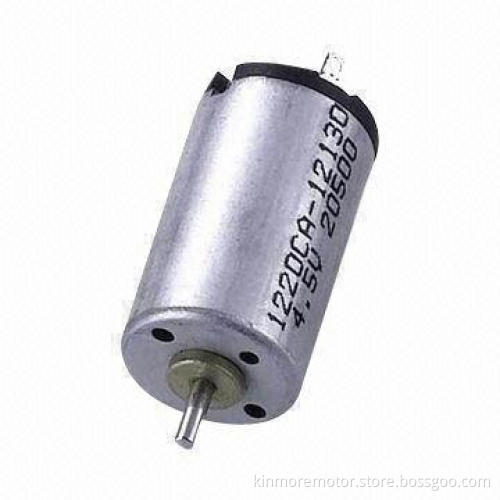

2.4V DC Micro Motor, 12 x 20mm Housing and Dia 1.5mm Shaft, for Household Appliance and Door Locks
  • 2.4V DC Micro Motor, 12 x 20mm Housing and Dia 1.5mm Shaft, for Household Appliance and Door Locks
2.4V DC Micro Motor, 12 x 20mm Housing and Dia 1.5mm Shaft, for Household Appliance and Door Locks

2.4V DC Micro Motor, 12 x 20mm Housing and Dia 1.5mm Shaft, for Household Appliance and Door Locks

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Motor housing (D x L): 12 x 20mm (material: SECD)
    • Shaft (diameter): 1.5mm carbon steel (nickel coating)
    • Way of commutation: metal brush
    • Structures: 2-pole stator and 3-slot armature
    • Rotations: CW/CCW and reversible
    • Options: EMI/EMC suppression and vibration motor
  • Technical performance data:
    • Rated voltage: 2.4V DC
    • At no load:
      • Speed: 15,000rpm
      • Current: 0.12A (maximum)
    • At 4.0g.cm load:
      • Speed: 10,000rpm
      • Current: 0.4A (maximum)
      • At stall:
        • Current: 1.2A (maximum)
        • Torque: 11g.cm (minimum)
      • Customized data requirements are welcome for our engineer'sevaluation
  • Applications: suitable for household appliance and doorlocks
  • Customization options:
    • OEM and customization are available
    • RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low cogging design
    • High degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low noise design
    • Fast response (small Tm)
    • High torque at a low speed
    • PTC protection
    • Penolic resin base commutator
    • Epoxy coating armature
    • Light weight and long life
  • Constructions of motor:
    • 2-pole stator
    • Sr ferrite permanent magnet
    • 3, 5, 7, 8, 9, 12 slots armature
    • Silicon-steel lamination with epoxy coating
    • High-Carbon steel shaft
    • Cu-Ag alloys commutator
    • Copper-graphite brushes
    • Be-Cu leaf-brush commutating system
    • SECD round/flat shape housing
    • SECD end cap/PA66 + fiber end cap
    • Cylinder (self-aligning) sintered bush
    • 155 degree (Class F) copper wire
  • Motor housing (D x L): 12 x 20mm (material: SECD)
  • Shaft (diameter): 1.5mm carbon steel (nickel coating)
  • Way of commutation: metal brush
  • Structures: 2-pole stator and 3-slot armature
  • Rotations: CW/CCW and reversible
  • Options: EMI/EMC suppression and vibration motor
  • Rated voltage: 2.4V DC
  • At no load:
    • Speed: 15,000rpm
    • Current: 0.12A (maximum)
  • At 4.0g.cm load:
    • Speed: 10,000rpm
    • Current: 0.4A (maximum)
    • At stall:
      • Current: 1.2A (maximum)
      • Torque: 11g.cm (minimum)
    • Customized data requirements are welcome for our engineer'sevaluation
  • Speed: 15,000rpm
  • Current: 0.12A (maximum)
  • Speed: 10,000rpm
  • Current: 0.4A (maximum)
  • At stall:
    • Current: 1.2A (maximum)
    • Torque: 11g.cm (minimum)
  • Customized data requirements are welcome for our engineer'sevaluation
  • Current: 1.2A (maximum)
  • Torque: 11g.cm (minimum)
  • OEM and customization are available
  • RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low cogging design
  • High degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low noise design
  • Fast response (small Tm)
  • High torque at a low speed
  • PTC protection
  • Penolic resin base commutator
  • Epoxy coating armature
  • Light weight and long life
  • 2-pole stator
  • Sr ferrite permanent magnet
  • 3, 5, 7, 8, 9, 12 slots armature
  • Silicon-steel lamination with epoxy coating
  • High-Carbon steel shaft
  • Cu-Ag alloys commutator
  • Copper-graphite brushes
  • Be-Cu leaf-brush commutating system
  • SECD round/flat shape housing
  • SECD end cap/PA66 + fiber end cap
  • Cylinder (self-aligning) sintered bush
  • 155 degree (Class F) copper wire
