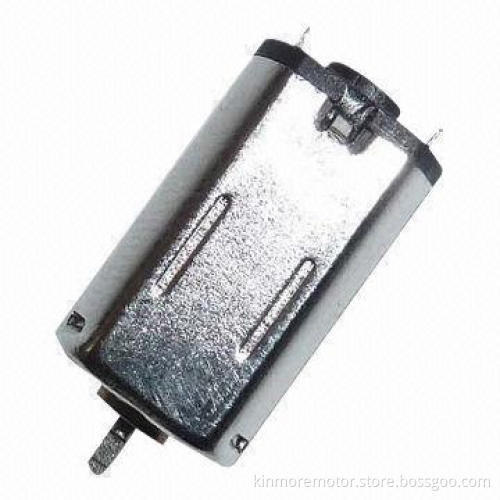

3V DC Micro Motor with 10 x 8 x 16mm Housing, Diameter 1.0mm, Shaft for Blood Pressure Pumps, Toys
- Payment Type:
- L/C at Sight, TT
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C at Sight, TT |
|---|
- Rated voltage: 3.0V DC
- At no load:
- Speed: 8,700rpm
- Current: 0.04A (maximum)
- At 1.0g.cm load:
- Speed: 7,200rpm
- Current: 0.085A (maximum)
- At stall:
- Current: 0.28A (maximum)
- Torque: 4.5g.Nm (minimum)
- Customized data requirements are welcomed
- Suitable for our engineers evaluation
- Motor housing (D x flat x L): 10 x 8 x 16mm (material:SECD)
- Shaft (diameter): 1.0mm carbon steel (nickel coating)
- Way of commutation: metal brush
- Structure: 2-pole stater and 3-slot armature
- Magnet type: Nd-Fe-B
- Rotation: CW/CCW and reversible
- Options: extended shaft on the end cap side, EMI/EMCsuppression
- Suitable for blood pressure pumps and toys
- Speed: 8,700rpm
- Current: 0.04A (maximum)
- Speed: 7,200rpm
- Current: 0.085A (maximum)
- Current: 0.28A (maximum)
- Torque: 4.5g.Nm (minimum)
