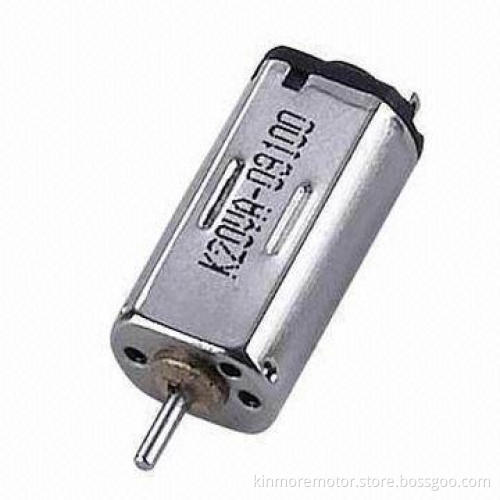

3.5V DC Micro Motor for Precision Meters/Toys with 8 x 6 x 14.5mm Housing and 1.0mm Shaft Diameter
  • 3.5V DC Micro Motor for Precision Meters/Toys with 8 x 6 x 14.5mm Housing and 1.0mm Shaft Diameter
3.5V DC Micro Motor for Precision Meters/Toys with 8 x 6 x 14.5mm Housing and 1.0mm Shaft Diameter

3.5V DC Micro Motor for Precision Meters/Toys with 8 x 6 x 14.5mm Housing and 1.0mm Shaft Diameter

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Motor housing (D x flat x L): 8 x 6 x 14.5mm (material:SECD)
  • Shaft (diameter): 1.0mm carbon steel (nickel coating)
  • Way of commutation: metal brush
  • Structure: 2-pole stator and 3-slot armature
  • Magnet type: Nd-Fe-B
  • Rotation: CW/CCW and reversible
  • Options: EMI/EMC suppression, vibrator
  • Rated voltage: 3.5V DC
  • At no load:
    • Speed: 23,800rpm
    • Current: 0.04A
  • Efficiency (maximum):
    • Speed: 18,700rpm
    • Current: 0.15A
    • Torque: 1.25g.cm
  • At stall:
    • Current: 0.56A (maximum)
    • Torque: 5.82g.cm
  • Customized data requirements are welcome for our engineer'sevaluation
  • Applications: suitable for precision meters and toys
  • Speed: 23,800rpm
  • Current: 0.04A
  • Speed: 18,700rpm
  • Current: 0.15A
  • Torque: 1.25g.cm
  • Current: 0.56A (maximum)
  • Torque: 5.82g.cm
