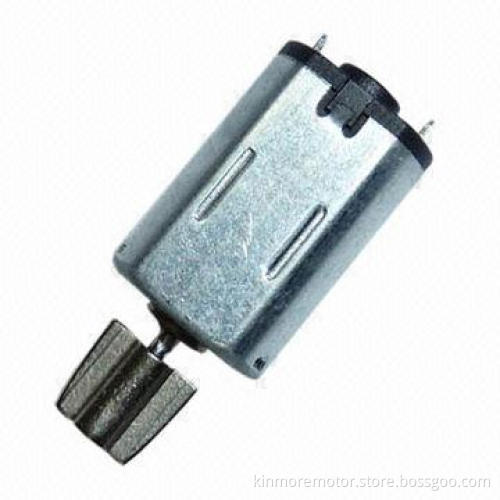

Micro DC Motor for Door Lock Actuator, Digital Cameras and CD/DVD Players

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T and L/C

Product Description

Ideal for door lock actuator, digital cameras and CD/DVDplayers

Motor housing (D round x W x L): 10 x 8 x 15mm (material:SECD)

Shaft (D): 1.0mm carbon steel (nickel-coating)

Way of commutation: precious metal brush

Rotation: CW/CCW, reversible

With vibrator (R) 5.8 x 9.6mm

Rated voltage: 1.5V DC

Load: alloy vibrator, made of several steel stack

1 slice thick: 1.2mm

On load speed: 5,200rpm

On load current: 400mA

At stall:

Options: shaft length, custom made technical data like voltage,speed and torque, vibrator size

Current: 0.65A (maximum)

Starting voltage: 1V
