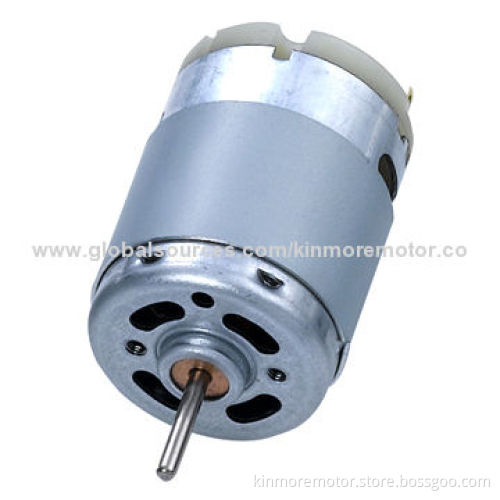

Vehicle DC motors, 24v with 5.7mm terminal for cars

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specifications:

Standard operating conditions:
- Rated voltage: DC 24.0V
- Operating temperature range: 0-+45°C
- Storage temperature range: -30°C-+45°C
- Direction of rotation: Counter clockwise when viewing motor output side with positive voltage applied to positive (Red) terminal
Measuring Condition:
- Voltage: DC 24V
- Environmental temperature range: 0°-45°C
- Environmental humidity: 30-95%RH
- Motor position: Motor to be held with shaft horizontally

Electrical characteristics at initial stage after 30 seconds run-in:

Voltage:
- Rated voltage: DC 24.0V
No load:
- Speed: 8,000rpm
- Current: 95mA
On load:
- Current: 120mA
- Speed: 7600rpm
Dimensions:
- Iron core:
  - Dia: 27.7mm
  - Length: 37.8mm
  - Shaft Dia: 2.3mm

Key features:

Plastic end cap
Sintered bronze bearing
Leaf brush system
3 slots armature typical applications:
- Printer/copy machine
- Automatic cruise control
- Drill/screwdriver
Vacuum cleaner constructions of motor:
- 2-pole stator
- Sr ferrite permanent magnet
- 3, 5, 7, 8, 9, 12 slots armature
- Silicone-steel lamination with epoxy coating
- High-carbon steel shaft
- Cu-Ag alloys commutator
- Copper-graphite brushes
- Be-Cu leaf-brush commutating system
- SECD round/flat shape housing
- SECD end cap/PA66 + fiber end cap

Standard operating conditions:

Rated voltage: DC 24.0V
Operating temperature range: 0-+45°C
Storage temperature range: -30°C-+45°C
Direction of rotation: Counter clockwise when viewing motor output side with positive voltage applied to positive (Red) terminal

Measuring Condition:
