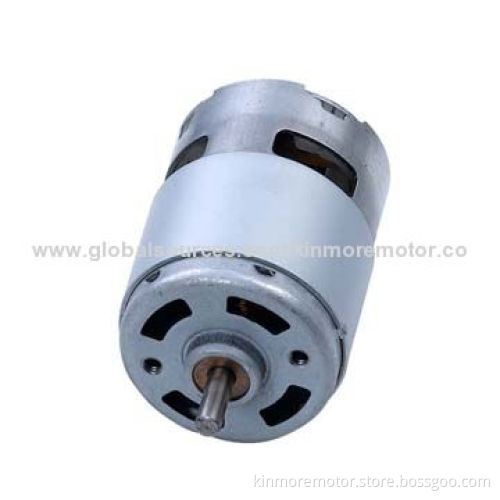

24V Electric Motor for Vehicle, Big Torque, RoHS Mark

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:
Motor housing (D x L): 43.8 x 59mm
Material: SECD
Shaft: 5.0mm carbon steel (nickel-coated)
Way of commutation: carbon leaf brush system
EMC/EMI suppression: optional
Ball bearing on the driving sides is available
2 poles stator and 3 slots armature
Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression
Insulation: class F-magnet wire
Rotation: CW/CCW and reversible
Performance:
Measuring conditions:
Rated voltage: 24V DC
Motor position: to be measured with motor horizontally held
Environment temperature: 25 ±10
Environment humidity: 65 ±20% RH
Electrical characteristics: (at initial stage after 30 seconds run-in):
At no load:
Speed: 5,000 ±10% rpm
Current: 0.19A (maximum 5.4A)
At maximum efficiency:
Torque: 34.1mNm/ 348g.cm
Speed: 4470 ±10% rpm
Current: 0.79A (maximum 25.85A)
Output: 15.48W
At stall:
Torque: 223.5mNm/ 2280g.cm
Current: 9.72A (maximum 128.03A)
Direction of rotation: CCW (counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal
End play: 0.05 to 0.55mm (maximum)
Class F magnet wire
Operating temperature: -10 to +60°C

About us:
Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
Product size range: 6 - 52mm
Voltage range: 1.5 - 42V DC
Rectify: 100, 110, 220, 230, 240V AC and more
Speed range: 1 - 30,000rpm
Stall torque: 5g - 30kg.cm
Applications: home appliances, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment and more
Our services:
OEM and customization are available
RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degrees of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small tm)
High-torque at a low-speed
PTC protection
Phenolic resin base commentator
Epoxy coating armature
Lightweight and long lifespan
